Simba 10-inch 4-Way Outdoor System
Tax included. Shipping calculated at checkout
Setup support call included
Lead time is approx. 12-14 weeks
Our team helps you connect, configure, and align your system step by step, ensuring everything runs exactly as intended.
What you need to prepare for the call:
– PC laptop. Make sure your laptop has a LAN cable input; if not, prepare an adapter or hub with a LAN cable input.
– LAN cable to connect the amplifier to your PC.
– Download the amplifier software and the Simba presets from our Support Center.
All portable systems and enclosures are made to order in our Cologne workshop. They are not held as finished stock.
Estimated production time is 12 - 14 weeks. Each unit is handcrafted with precision, and minor variations in finish may occur due to the nature of the manufacturing process.
Upon order confirmation, your system is placed into our production schedule. Manufacturing begins once it reaches its allocated production slot.
Production timelines are based on current capacity and component availability and may vary depending on order volume.
By placing an order, you acknowledge and accept this production process and timeline structure.
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
We offer a two-year warranty on all our products.
SPECIFICATIONS
- 4-way sound system architecture for full-range performance
- High-power 10″ transducers
- Rear-loaded scoop horn for deep and controlled low-frequency performance
- Trapezoid kick-top enclosure combining midrange drivers with a horn-loaded compression driver
- Compact system design built for portability
- Designed and manufactured in Germany

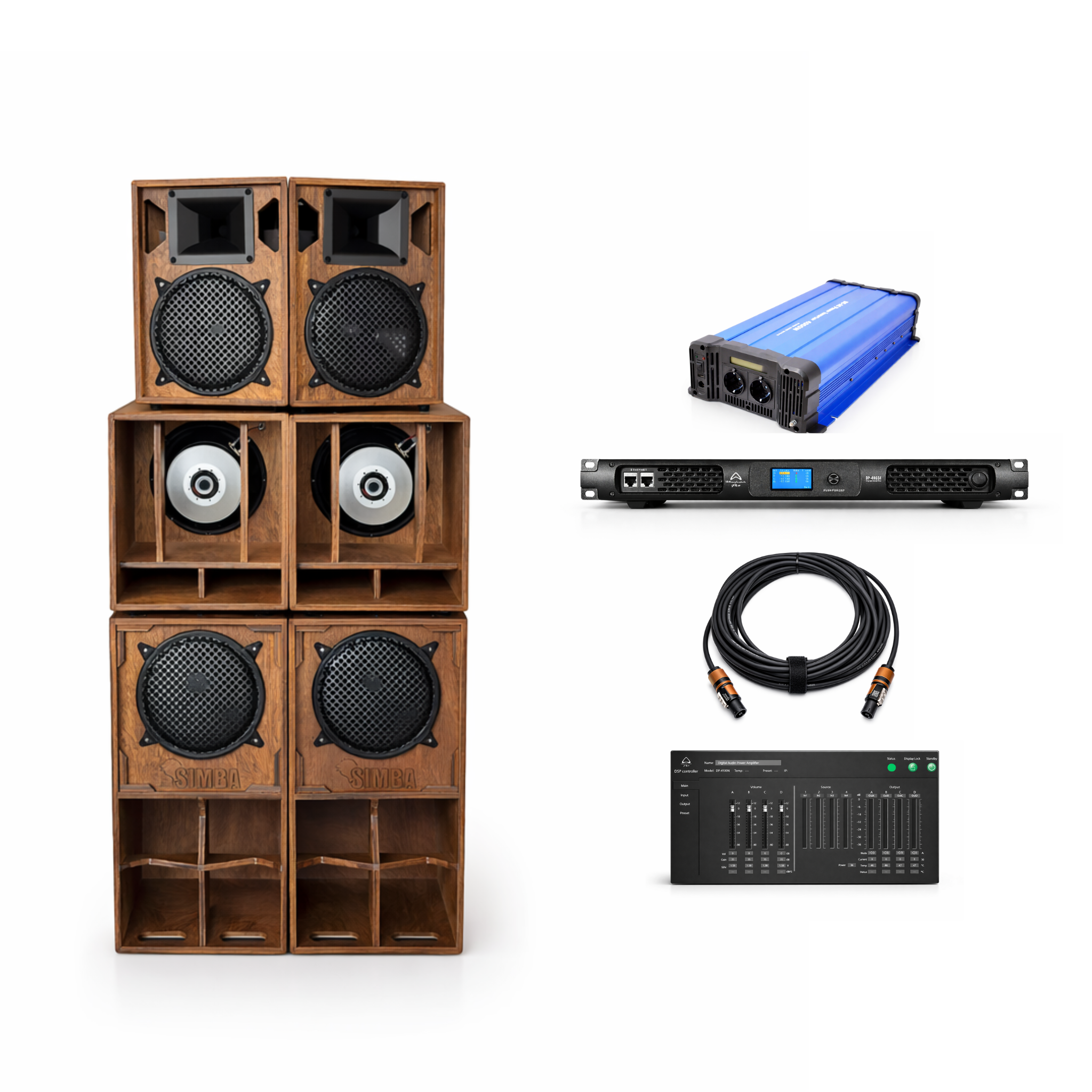

2 × Simba 10-inch Subwoofer
2 × Simba 10-inch Upper bass
2 × Simba 10-inch Kick-Top
1 × Wharfedale Pro DP-4065F MK2 Amplifier
1 × VAS Outdoor Transformer FS4000D
1 × Cable Bundle: 4 × 15 m speaker cables (2 × 2.5 mm²) with Neutrik speakON® Connectors, 4 × 60 cm patch cables (2 × 2.5 mm²) with Neutrik speakON® Connectors
DSP presets
1-on-1 support call
Driver Size:
Scoop: 10" / Kick: 10" / MF: 10" / HF: 1"
Power Handling:
Each Scoop: 400W RMS, 800W Program / Each Kick: 400W RMS, 800W Program / Each MF: 300W RMS, 600W Program / Each HF: 50W AES
Impedance:
Scoop: 4 Ohm / Kick: 4 Ohm / MF: 4 Ohm / HF: 4 Ohm
Frequency Range:
Scoop: 40 - 180 Hz (-10dB) / Kick: 80 - 220 Hz (-3dB), 70 - 300 Hz (-10dB) / MF: 100 - 1,200 Hz (-3dB) / HF: 1,200 - 19 kHz (-10dB)
System Type:
Passive 4-way sound system, external amplification and DSP processing required (4 amplifier channels needed)
Connectivity:
Neutrik speakON® NL4 (+1/-1) on all enclosures
Hardware:
Scoop: Simba logo, Neutrik speakON® (+1/-1), Wooden handles, Rubber feet, Black coated round grill with holders
Kick: Neutrik speakON® (+1/-1), Rubber feet
Kick-Top: Neutrik speakON® (+1/-1), Wooden handles, Rubber feet, Black coated round grill with holders, Damping material
Material:
15mm precision-cut WISA® birch plywood, CNC manufactured
Dimensions:
Scoop: H/71.2 cm, W/37.0 cm, D/ 48.6 cm
Kick: H/40.0 cm, W/37.0 cm, D/45.0 cm
Kick-Top: H/46.5 cm, W/33.5 cm, D/33.2 cm
Weight:
System: 118 kg
Equipment: 30 kg
Finish: Available in Raw, Clear, or Vintage Oak finish.
- Home setups
- Mobile DJ setups
- Bars, bistros, beach bars
- Small to mid-size venues
- Outdoor events
- Coverage for up to 80 people
