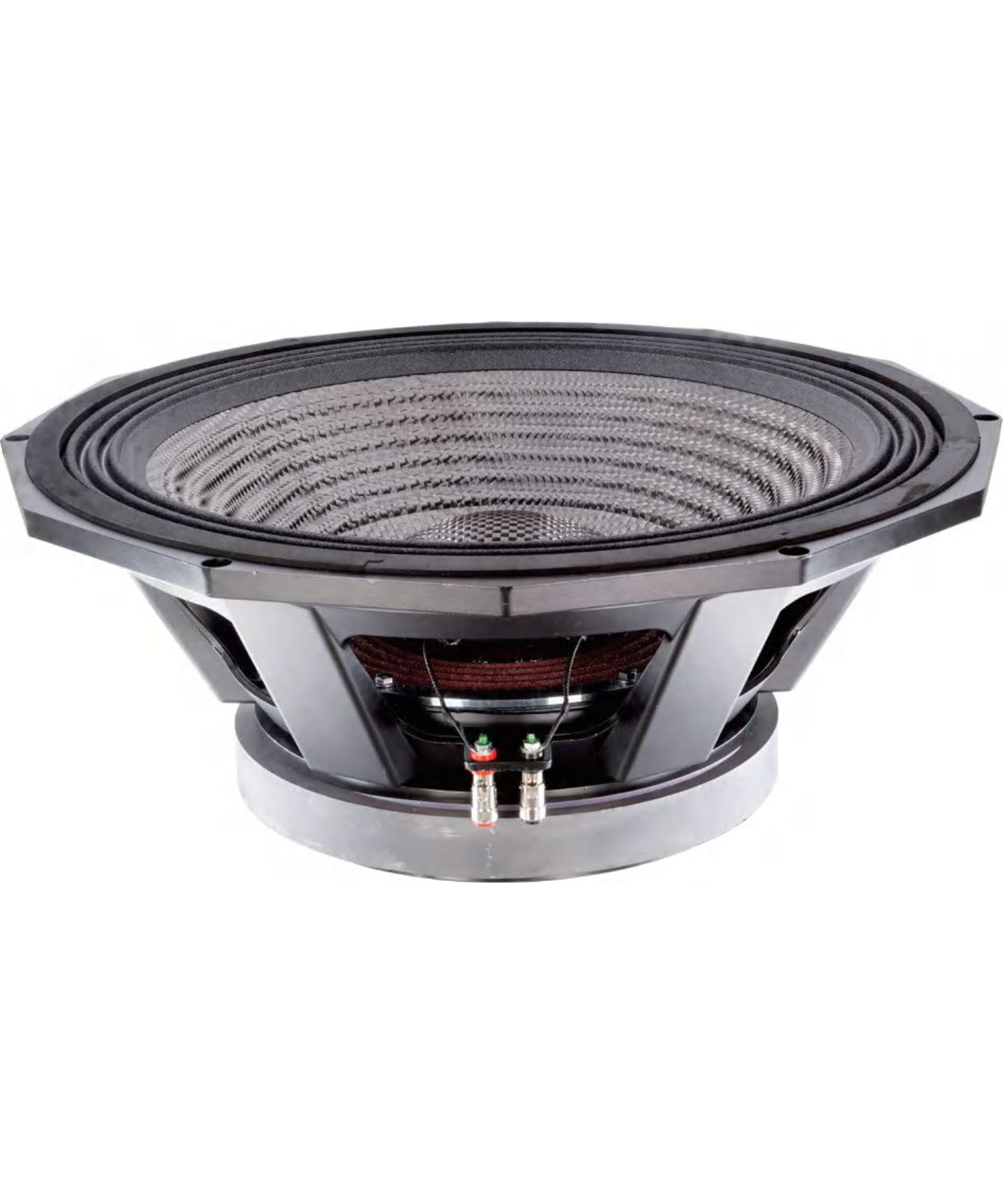

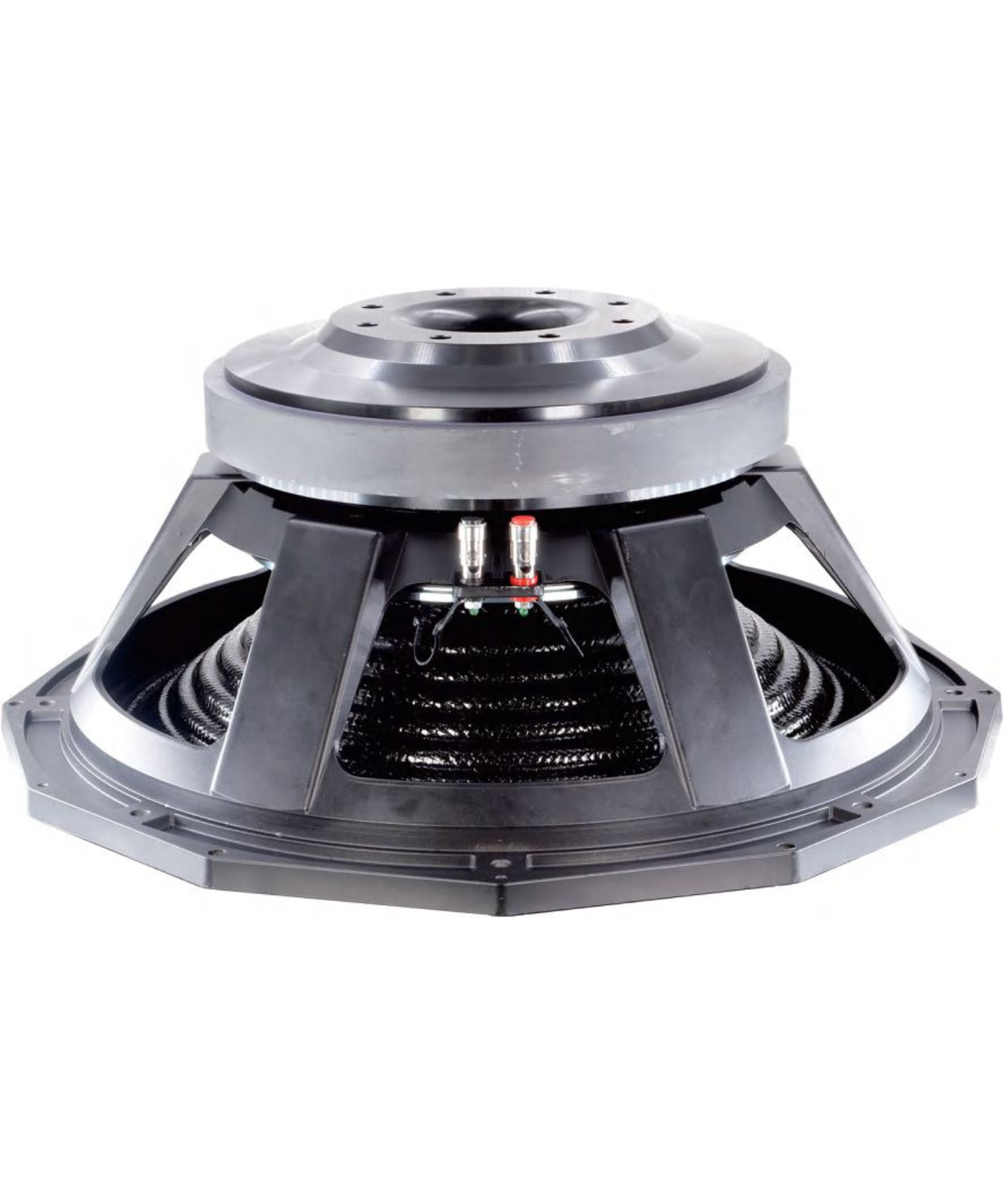

VAS 18-1700FC Speaker Driver
Tax included. Shipping calculated at checkout
Sold out! Preorder now!
Pre-estimated delivery date: November 2026
Shipping Info:
- EU: 29,90 EUR per unit
- Europe - non EU: 35,90 EUR per unit
- UK: 35,90 EUR per unit
Your legal guarantee rights
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
This component is intended for installation in a suitable loudspeaker enclosure by a person with appropriate technical knowledge. It contains a powerful magnet, keep it away from pacemakers, implanted medical devices, credit cards, and magnetic storage media, and beware of pinch hazards when handling near ferrous metal or other magnetic drivers. Observe the rated power handling and impedance (see technical specifications); operation outside these ratings may cause overheating, distortion, or permanent driver failure. Connect and disconnect only with the amplifier switched off. Frame edges, terminals, and the surround may be sharp or delicate, handle with care during installation and avoid pressing on the cone or dust cap. Store and transport in a dry environment; moisture can damage the voice coil and suspension.

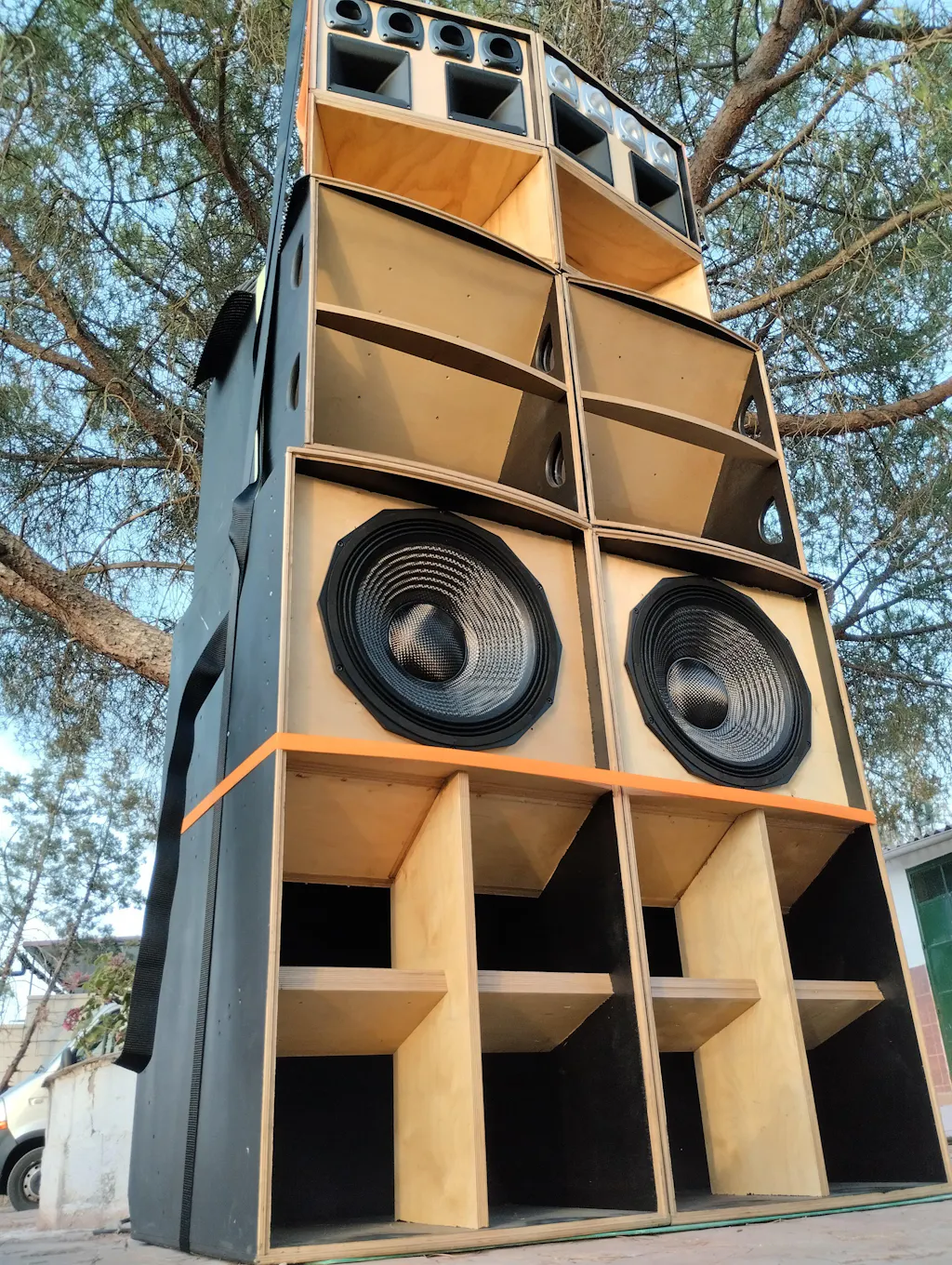

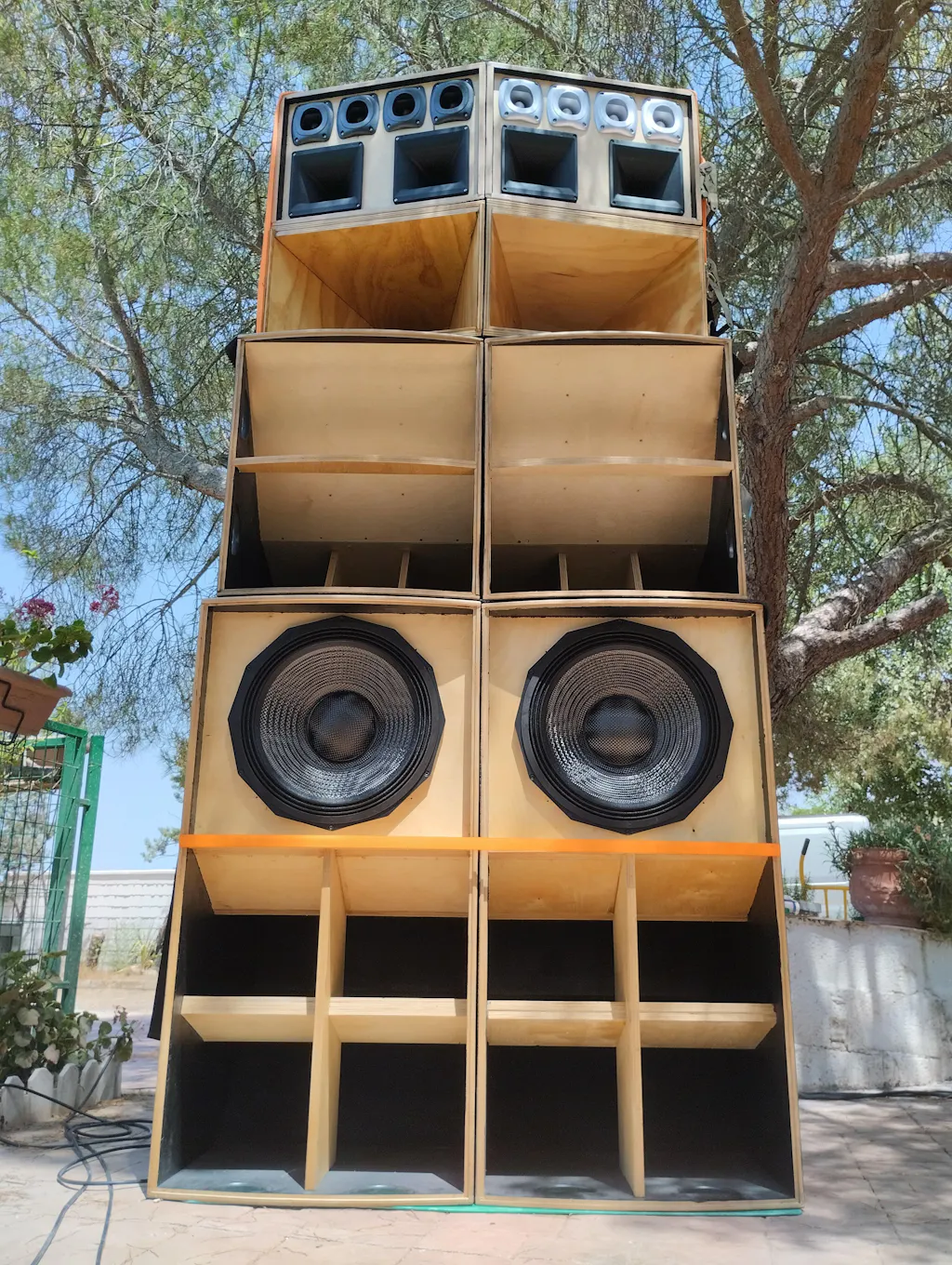

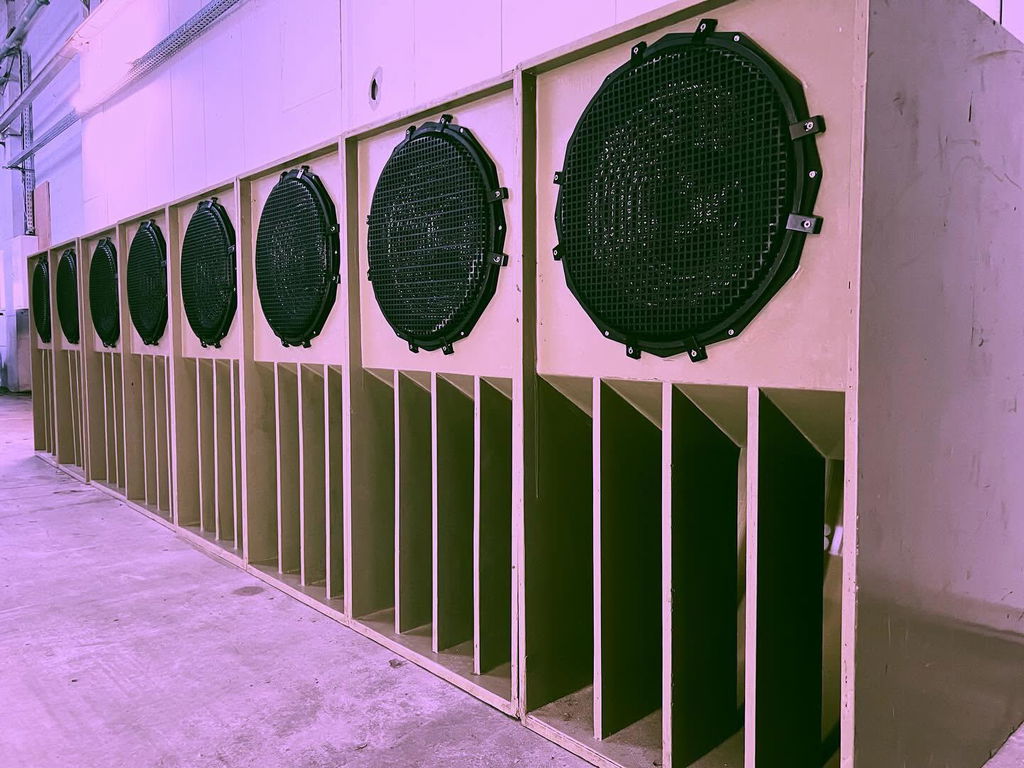

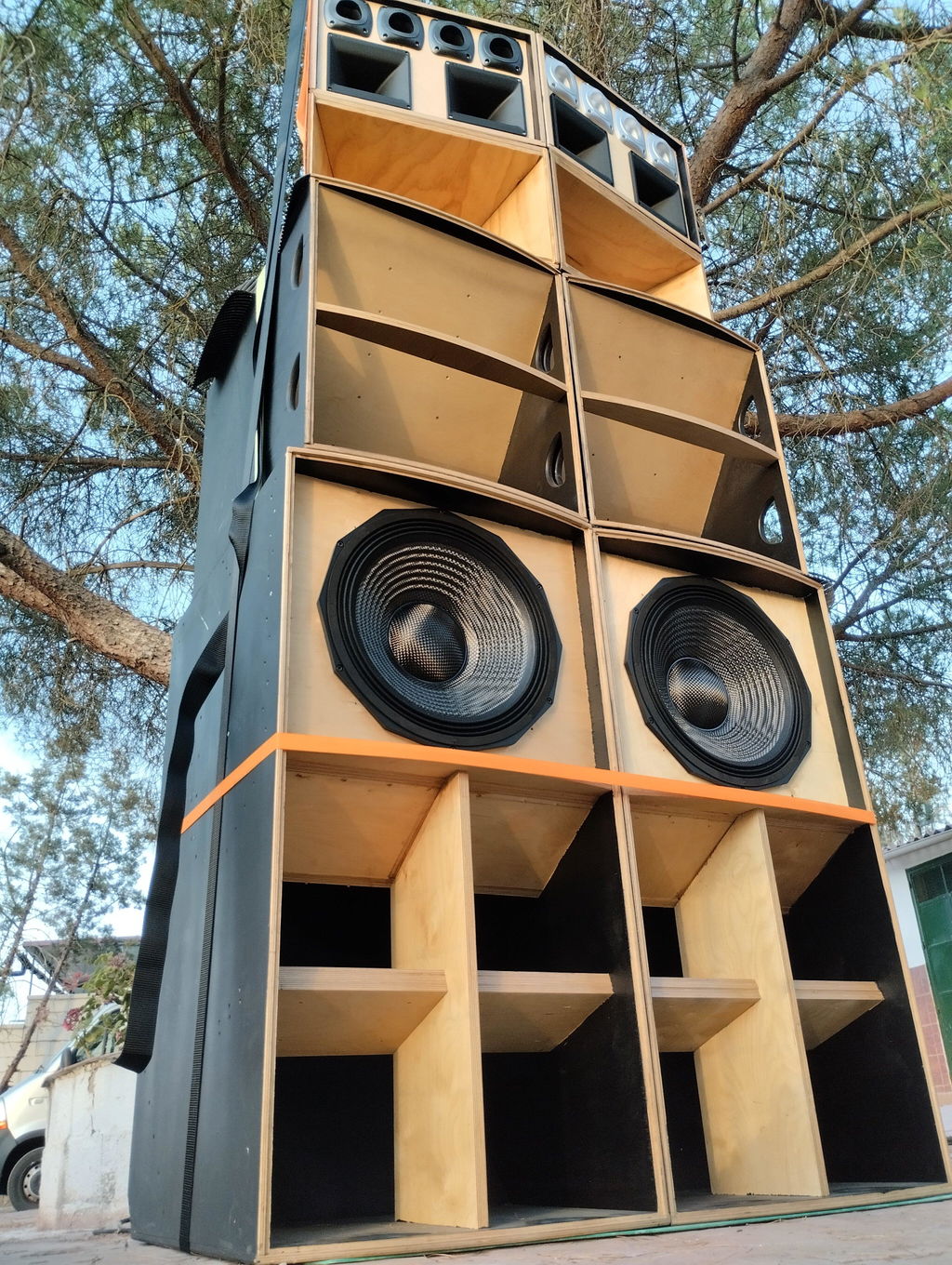

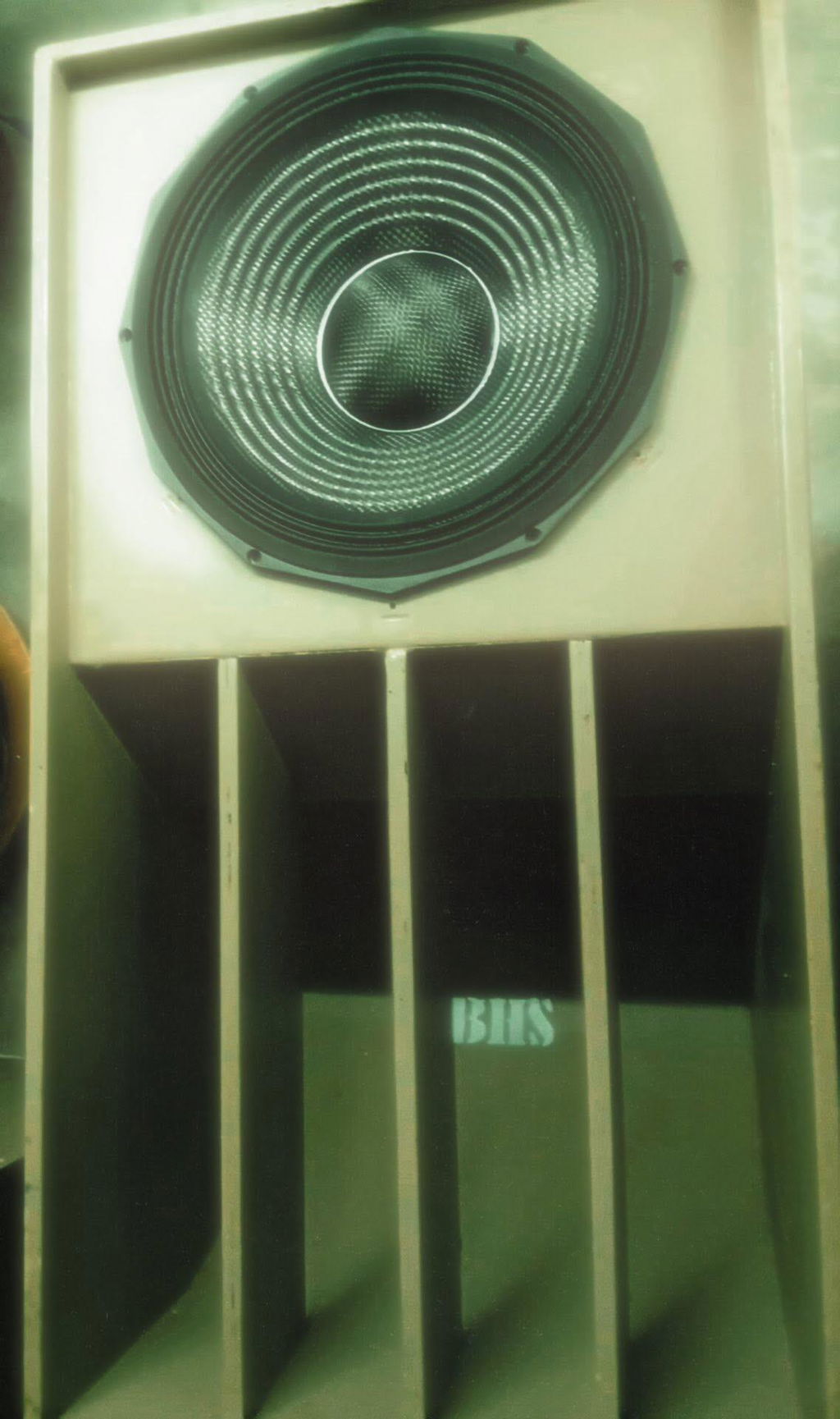

REAL SETUPS FROM VAS COMMUNITY
Follow us on our official Instagram profile for more.
SPECIFICATIONS
- 3400 W continuous program power capacity
- 97 dB sensitivity 1W/1m
- 30 Hz ~ 1000 Hz frequency response range
- 125 mm (5") high temperature inside/outside copper voice coil
- High-grade Y35 ferrite magnet, 30 mm in height, for longer excursion and higher force factor
- Aluminium demodulating ring for lower distortion
- Ultra-strong carbon cone and dust cap
- Silicone double Conex damper
- BL/Re optimized for loaded applications
- Suitable for reflex, bandpass, or horn-loaded high SPL subwoofer systems
- Engineered in Germany
Power Handling:
1700W Nominal / 3400W Program
Nominal Diameter:
460 mm / 18 inch
Frequency Range:
30 ~ 1000 Hz
Voice Coil Diameter:
125 mm / 5 inch
Rated Impedance:
8 ohm
Colour:
Black
Design:
Surround shape: Dodecagon
Cone shape: Straight
Magnet material: Y35 Ferrite
Former material: Glass fiber
Basket: Cast aluminium
Voice coil material: Copper
Woofer cone treatment: Carbon fibre with resin treatment
Recommended enclosure:
Reflex, Horn, Bandpass
Mounting Info:
Overall Diameter: 486 mm
Width Across Flats: 471 mm
Outer Bolt Circle: x6 M& on 470 mm PCD
Baffle Cutout Diameter: 424 mm
Depth: 200 mm
Air volume occupied by driver: 12.5 l
Number of bolt holes: 12
Weight:
20.4 kg
Resonance Frequency: 33 Hz
Re: 5.4 ohm
Qes: 0.30
Qms: 14.3
Qts: 0.295
Vas: 181 liters
Sd: 0.1225 cm²
Xmax: ±13.5 mm
Bl: 33.0 T.m
Le: 1.9 mH
EBP: 110
Thiele-Small parameters are measured with the Klippel DA LPM module after a high-level 20 Hz sine wave preconditioning test and represent the expected long-term parameters after a short term of use.
