COMPACT POWER, EXPANSIVE CLARITY
LA-style top delivering precise mids and highs in a modular stacking design.
Shape your sound with the VAS Q360 LA. Its line-array geometry and phase-coherent design project mids and highs with precision, while wide 110° horizontal dispersion ensures consistent coverage. Compact and ground-stackable, it’s the flexible top built to perform wherever you take it.
With tight midrange, crisp highs, and a long throw, the VAS Q360 LA brings definition to every mix. Integrated side handles and a dedicated platform for secure stacking, along with rugged construction, make it easy to set up and move between venues. Perfect for clubs, outdoor events, and bars that need reliable mid-high reinforcement.
Specifications
- Line array geometry with vertical dispersion

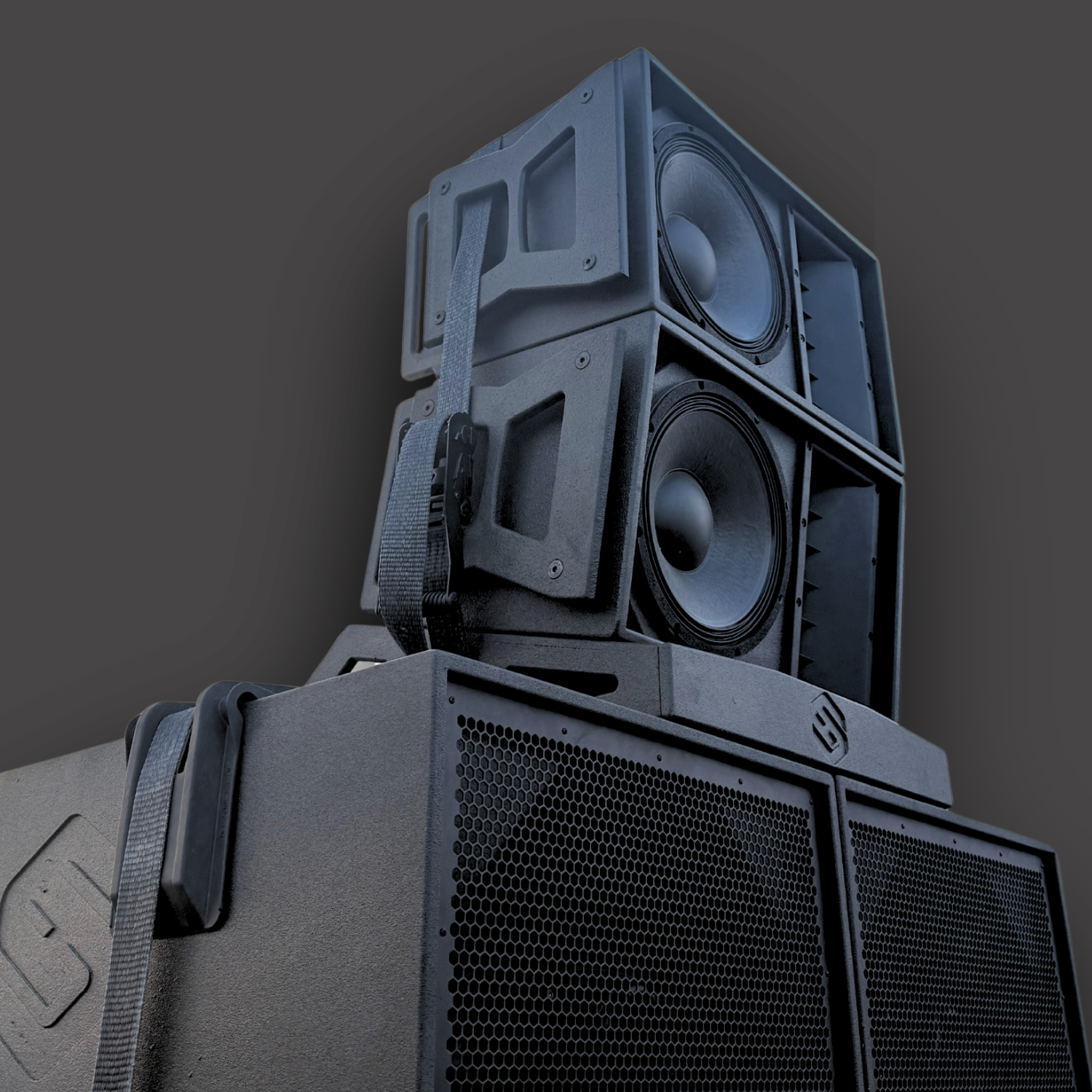

- Ground-stack configuration on a dedicated platform
- Wide horizontal dispersion 110 degrees
- Precise mid-high reproduction
- Phase-coherent design for a far throw
- Designed and manufactured in Germany
Usable Bandwidth:
80 Hz – 20 kHz (150 Hz - 20 kHz with VAS SK 118)
Maximum SPL¹:
134 dB Peak
Crossover Points:
MF: HP 75 Hz - 24 dB/oct (HP 155 Hz - 24 dB/oct with VAS SK 118)
MF: LP 700 Hz - 24 dB/oct
HF: HP 750 Hz - 24 dB/oct
Nominal Impedance:
MF: 4 Ω
HF: 4 Ω
RMS Power Handling²:
MF: 2 × 500 W
HF: 2 × 80 W
Driver Configuration:
MF: 1 × 12"
HF: 2 × 1,4"
Dispersion:
110°H × 10°V
Connectors:
4 × 4-pole speakON™
Enclosure:
Mid-top Line Array
Dimensions:
645 × 390 × 360 mm
Weight:
~34 kg
Rigging:
Ground-stackable; matching top tracking; captive rebates for cardioid/omni arrays flyable; matching stacking platform
Finish:
Polyurea Pro-Coating
__________________________
¹ Measured at 1m under half-space conditions using pink noise with a crest factor of 4.
² Calculated using the mean impedance measured across the usable bandwidth.
- Finish: Raw or Clear varnish
- VAS Q360 LA Stacking Platform
- Nightclubs
- Live music venues
- Bars, summer clubs, and lounge areas
- Festivals and outdoor stages
- Touring sound systems
