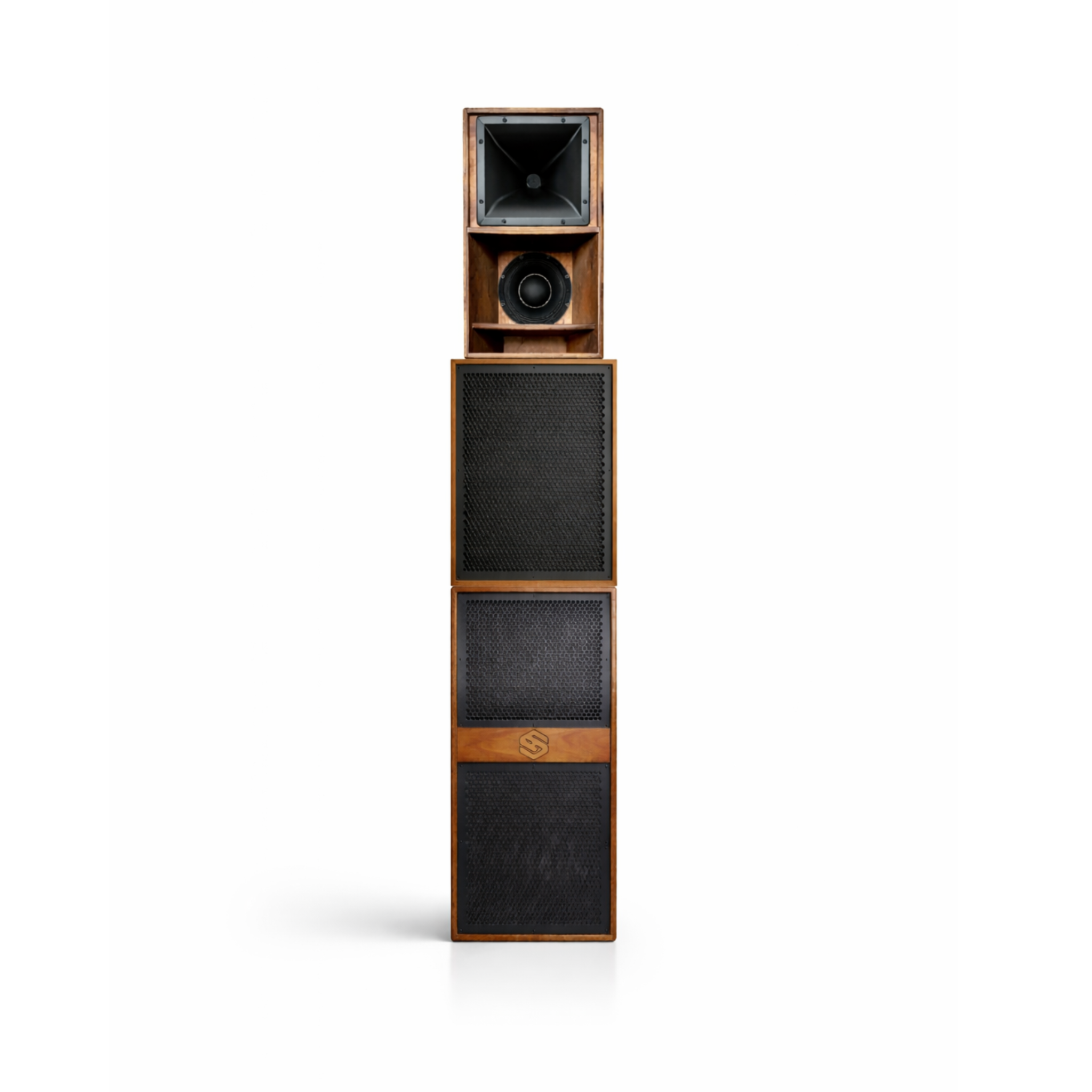

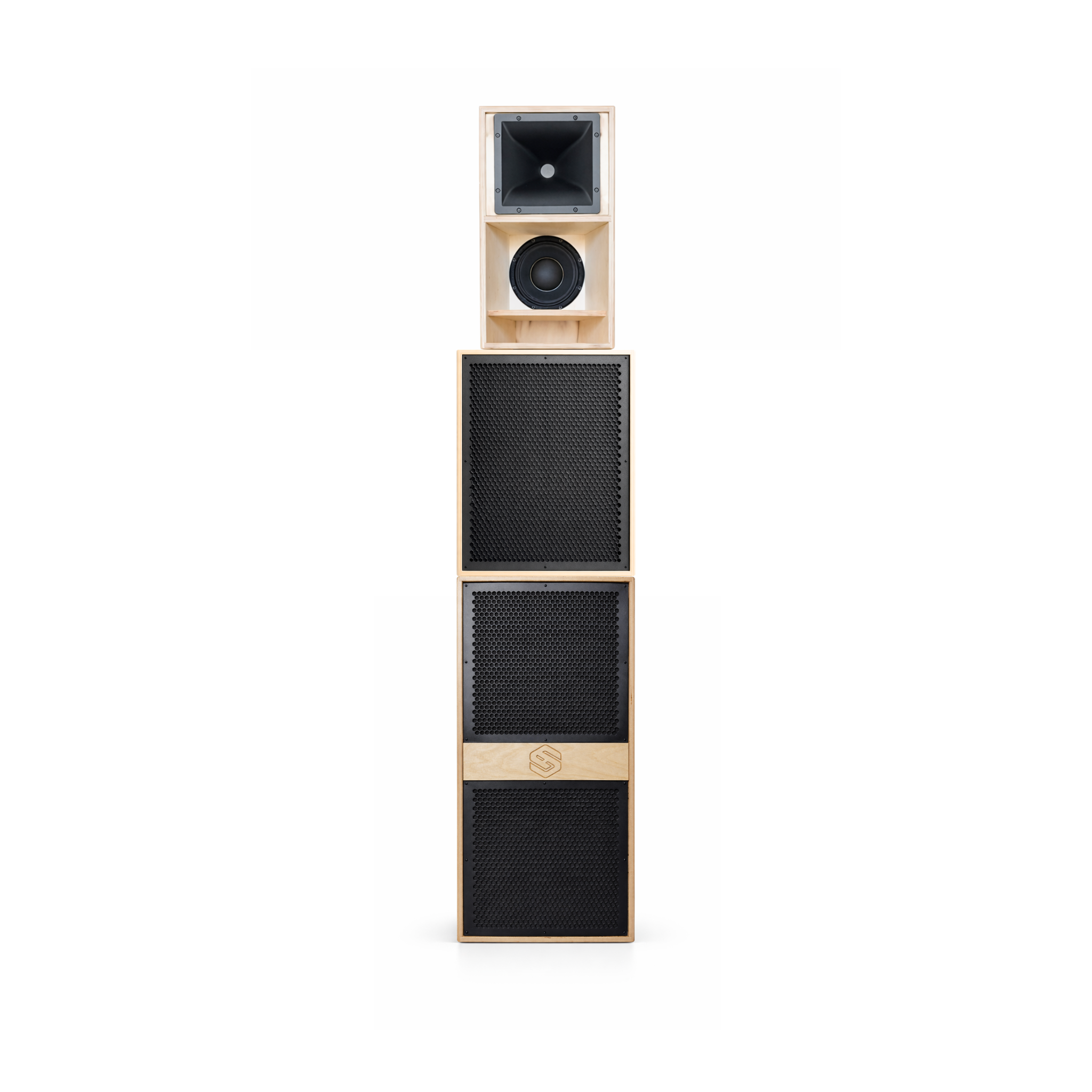

Lava 4-Way Complete System
Tax included. Shipping calculated at checkout
Setup support call included
Lead time approx. 12-14 weeks
Our team helps you connect, configure, and align your system step by step, ensuring everything runs exactly as intended.
What you need to prepare for the call:
– PC laptop. Make sure your laptop has a LAN cable input; if not, prepare an adapter or hub with a LAN cable input.
– LAN cable to connect the amplifier to your PC.
– Download the amplifier software and the Faya presets from our Support Center.
All portable systems and enclosures are made to order in our Cologne HQ. They are not held as finished stock.
Estimated production time is 12 - 14 weeks. Each unit is handcrafted with precision, and minor variations in finish may occur due to the nature of the manufacturing process.
Upon order confirmation, your system is placed into our production schedule. Manufacturing begins once it reaches its allocated production slot.
Production timelines are based on current capacity and component availability and may vary depending on order volume.
By placing an order, you acknowledge and accept this production process and timeline structure.
This product is shipped on a pallet due to its size and weight. Delivery is handled through our trusted logistics partners under DAP (Delivered at Place) terms. Pickup from the VAS Audio headquarters is also available at checkout.
Check out our Shipping Policy.
REAL SETUPS FROM VAS COMMUNITY
Follow us on our official Instagram profile for more.
SPECIFICATIONS
- 4-way sound system architecture for full-range performance
- Dual high-power 12″ transducers
- Deep and controlled low-frequency performance
- Strong punch with fast transient response
- Integrated wooden handles and rear-mounted heavy-duty pro wheels
- Matching top tracking and captive rebates for secure stacking
- Compact design built for portability
- Designed and manufactured in Germany
2 × Lava Subwoofer
2 × Faya 12-inch Upper bass with protective foam
1 × Faya 8-inch Top
1 × Wharfedale Pro DP-4100F MK2 Amplifier
1 × Wharfedale Pro DP-2200F Amplifier
1 × Cable Bundle: 4 × 15 m speaker cables (2 × 2.5 mm²) with Neutrik speakON® Connectors, 2 × 60 cm patch cables (2 × 2.5 mm²) with Neutrik speakON® Connectors
DSP presets
1-on-1 support call
Driver Size:
Scoop: 2 x 12" / Kick: 12" / MF: 8" / HF: 1.4"
Power Handling:
Scoop (2x): 2000W RMS, 4000W Program / Kick (2x): 2000W RMS, 4000W Program / MF: 200W RMS, 400W Program / HF: 110W AES, 220W Program
Impedance:
Scoop (2x): 4 Ohm / Kick (2x): 4 Ohm / MF: 8 Ohm / HF: 8 Ohm
Frequency Range:
Scoop: 32 - 145 Hz (-10dB), 37 - 120 Hz (-3dB) / Kick: 50 - 160 Hz (-3dB) / MF: 140 – 1.200 Hz (-3dB) / HF: 1.200 – 20 kHz (-3dB)
System Type:
Passive 4-way sound system, external amplification and DSP processing required (4 amplifier channels needed)
Connectivity:
Neutrik speakON® NL4 (+1/-1) on all enclosures
Hardware:
Scoop: Neutrik speakON® (+/-), Wooden handles, Mounted heavy-duty pro wheels, Honeycomb black coated 1.5 mm steel grills with stamped edges, Protective acoustic foam
Kick: Neutrik speakON® (+/-), Rubber feet, Honeycomb black coated 1.5 mm steel grills with stamped edges, Protective acoustic foam
Top: Neutrik speakON® (+/-), Wooden handles, Rubber feet, Damping material
Material:
15mm precision-cut WISA® birch plywood, CNC manufactured
Dimensions:
Scoop: H/80 cm, W/39 cm, D/ 70 cm.
Kick: H/52.50 cm, W/39 cm, D/50 cm.
Top: H/62.0 cm, W/35.5 cm, D/39.5 cm
Weight:
System: 158 kg
Equipment: 30 kg
Finish: Available in Raw, Clear, or Vintage Oak finish.
- Portable sound systems
- Venues and clubs
- Fixed installations
- Outdoor events
- Suitable for audiences up to 250 people
