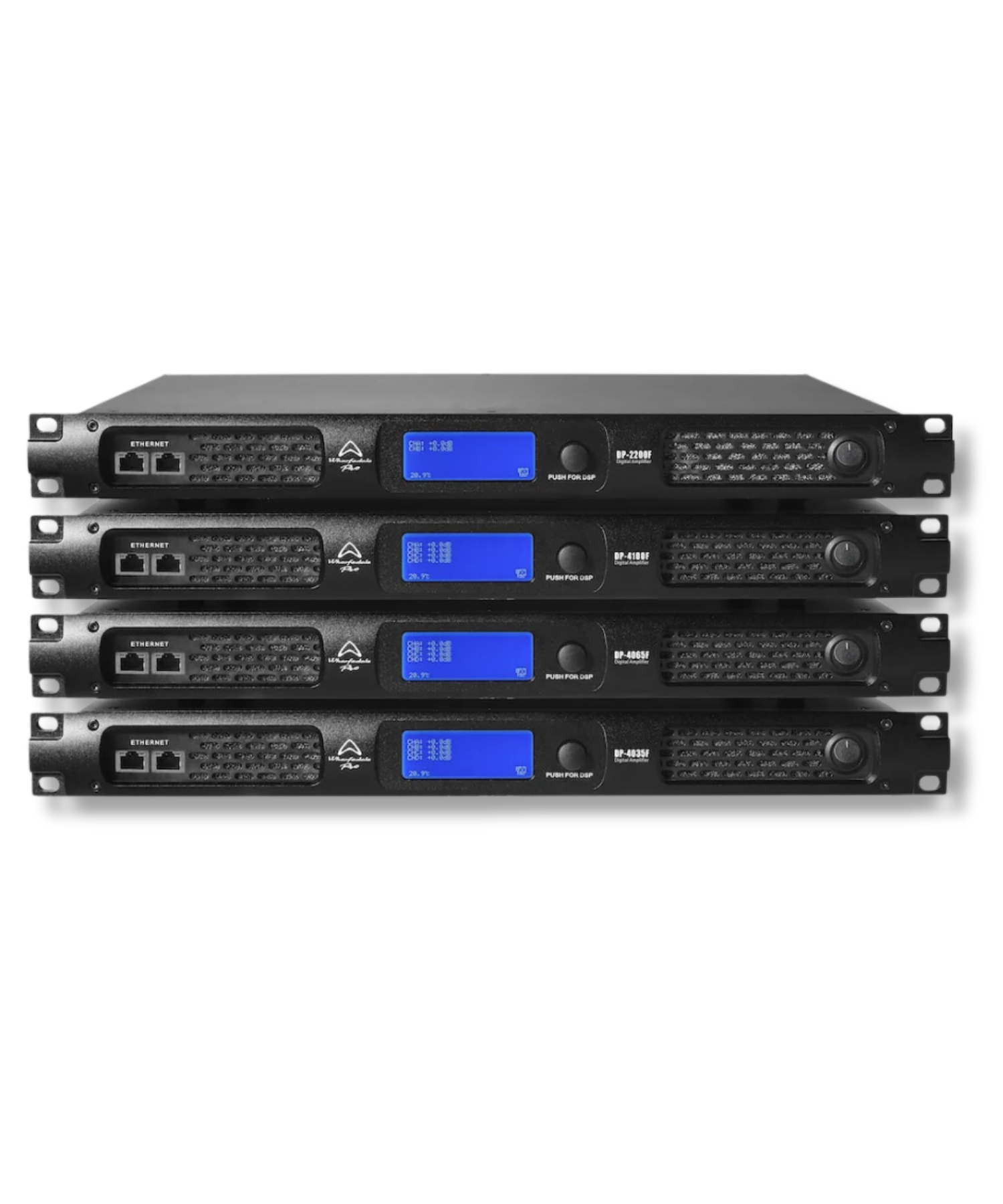

Wharfedale Pro DP-2200F
Tax included. Shipping calculated at checkout
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
Includes 2-Year Wharfedale Pro Warranty
This amplifier is a mains-powered device, read the operating manual completely before use and keep it for future reference, and heed all warnings on the unit and in the instructions. Do not use the apparatus near water, and protect it from rain, moisture, and spilled liquids. Clean only with a dry cloth, with the unit disconnected from power. Do not block any ventilation openings; install in accordance with the manufacturer's instructions, in a quality 19" rack with adequate airflow, and away from radiators and other heat sources, including other amplifiers. The apparatus must be connected to a mains outlet with a protective earth connection; do not defeat the safety purpose of the grounding plug, and if the plug does not fit your outlet, consult an electrician rather than modifying it. Protect the power cord from being walked on or pinched, particularly at the plug and where it exits the unit. The amplifier's speaker outputs carry voltages high enough to cause electric shock, connect and disconnect speaker cables only with the unit switched off, and ensure all connections are secure before operation. Do not exceed the rated loads (see technical specifications); the unit is stable to 2 ohms minimum. Unplug during lightning storms and long periods of disuse. The unit contains no user-serviceable parts, refer all servicing to qualified personnel, especially after cord damage, liquid ingress, exposure to rain, a fall, or abnormal operation.
SPECIFICATIONS
- 2-Channel class-D amplifier stable down to 2 Ω
- High output power up to 3400 W per channel and 9520 W bridged
- Integrated DSP with FIR processing
- Remote configuration via DSP Controller software
- AES/EBU digital input and balanced XLR analog inputs
- Compact 1U rack design
- 70 V & 100 V Hi-Z support
- Thermal, overload, DC, and power protection circuits
Power Amplifier Class:
Class D
Power Handling:
2 x 2000 W (8Ω), 2 x 3400 W (4Ω), 2 x 4760 W (2Ω)
1 x 4000 W (16Ω Bridged), 1 x 6800 W (8Ω Bridged), 1 x 9520 W (4Ω Bridged)
Control:
DSP Controller Software / Front Panel
Audio input/output:

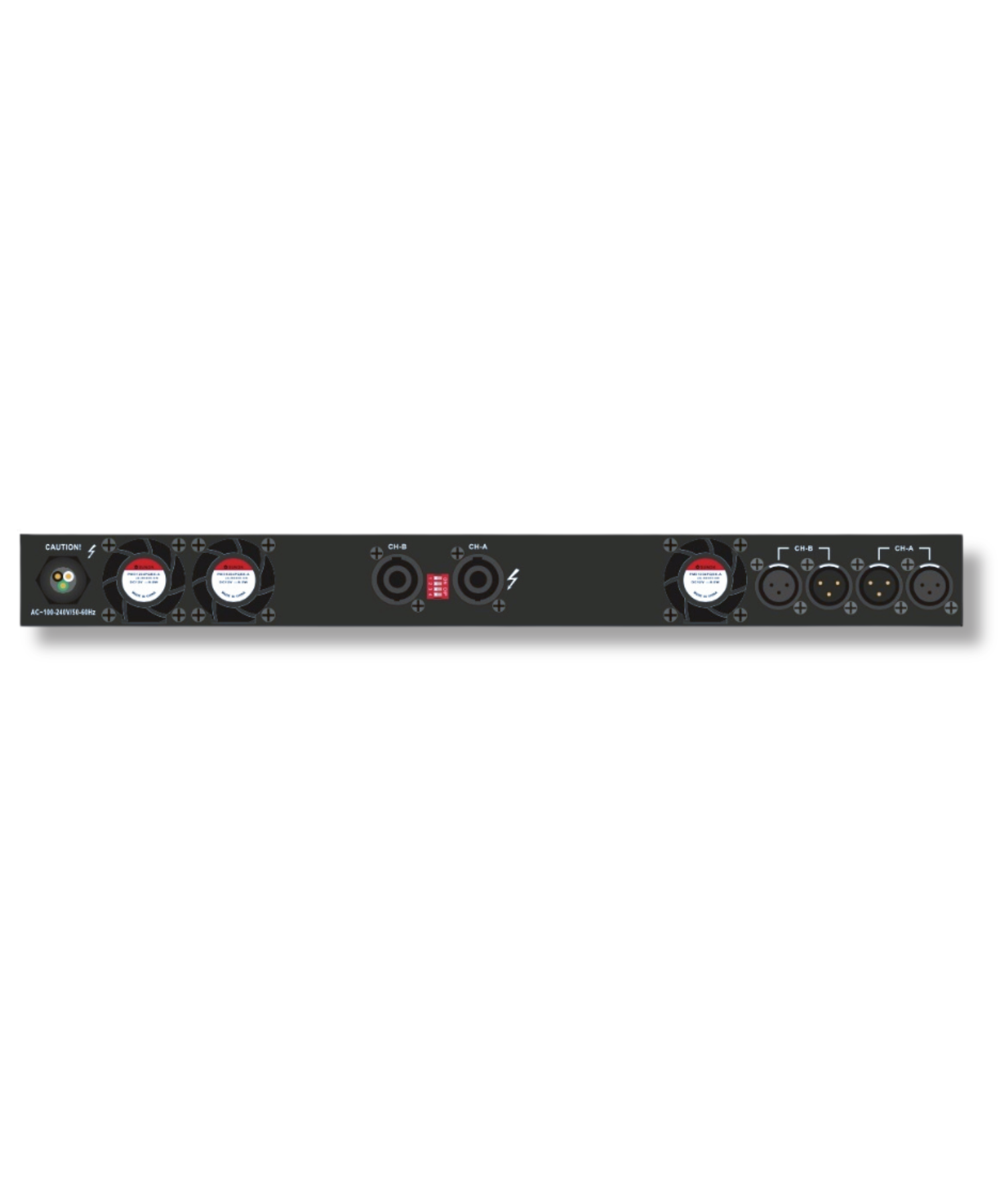

Audio input: 4 x XLR, lockable / 1 x AES/EBU
Audio outputs: 4 x Speakon NL4 (2 x fully & 2 x partially occupied)
DSP Features:
DSP with FIR
100V Hi-Z:
2 x 3400 W
70V Hi-Z:
2 x 2400 W
Output RMS Voltage (V):
126.5 V
Maximum input Level:
21 dBu (8.7 Vrms)
Default Gain (Rated power, 1 kHz) (dB):
35 dB
Gain (Rated Power, 1 kHz):
35 dB
THD+N:
Typical : 0.05% (10% Rated Power, 8 Ω)
Crosstalk:
≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω)
Frequency Response:
Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω)
Input Impedance:
20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor:
≥1000 (20 Hz-200 Hz, 8 Ω)
SNR:
≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω)
Protection:
Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control
Main Power:
90~260 V AC,50/60 Hz
Included Accessory:
AC Cable, User Manual
Material:
1U steel chassis, aluminum front panel
Mounting Type:
1U rackmount
Dimensions:
Unpacked (mm): 45 (H) x 483 (W) x 376 (D)
Packed (mm): 125 (H) x 510 (W) x 565 (D)
Weight:
9.3 kg (nett)
11.2 kg (gross)
