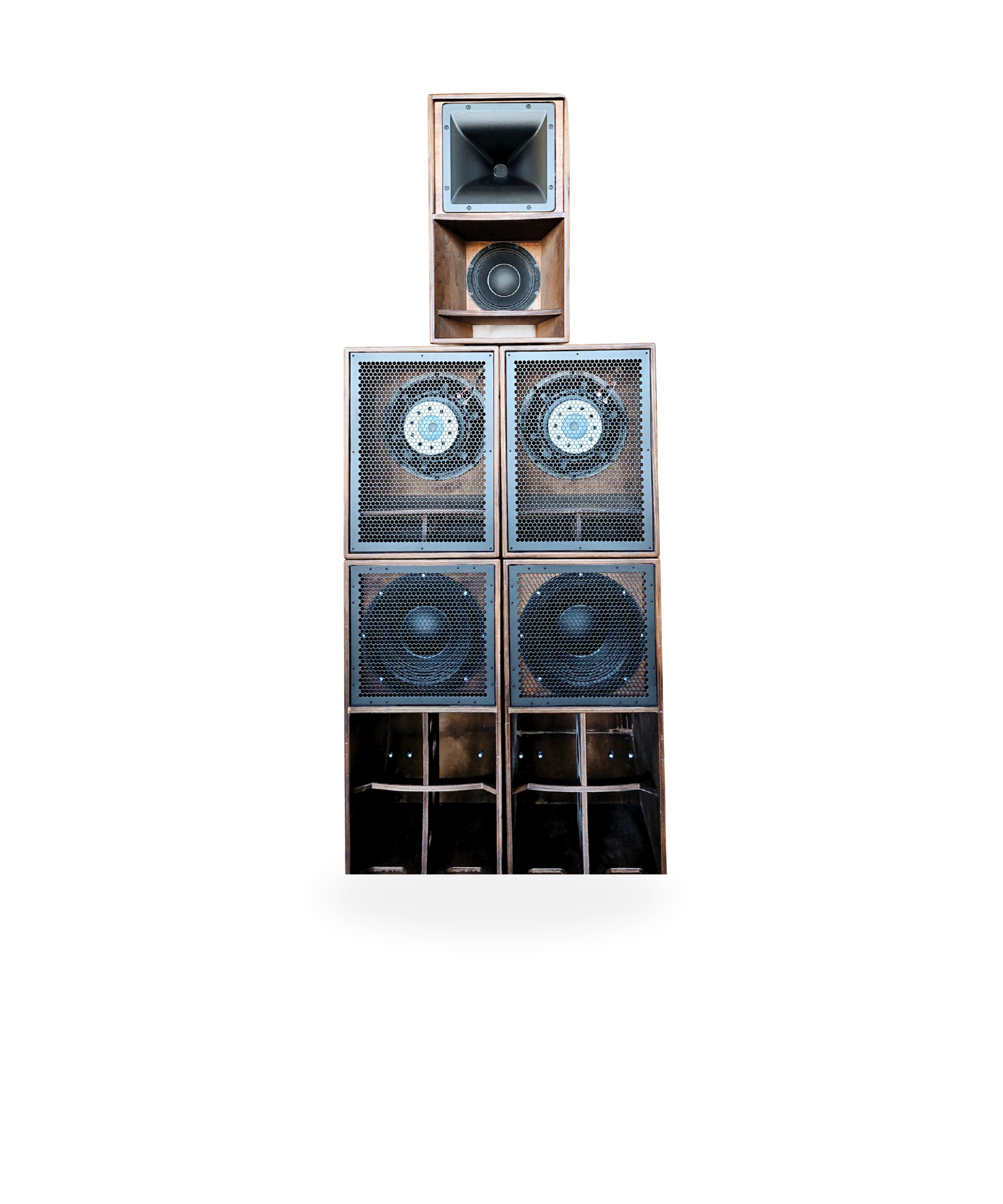

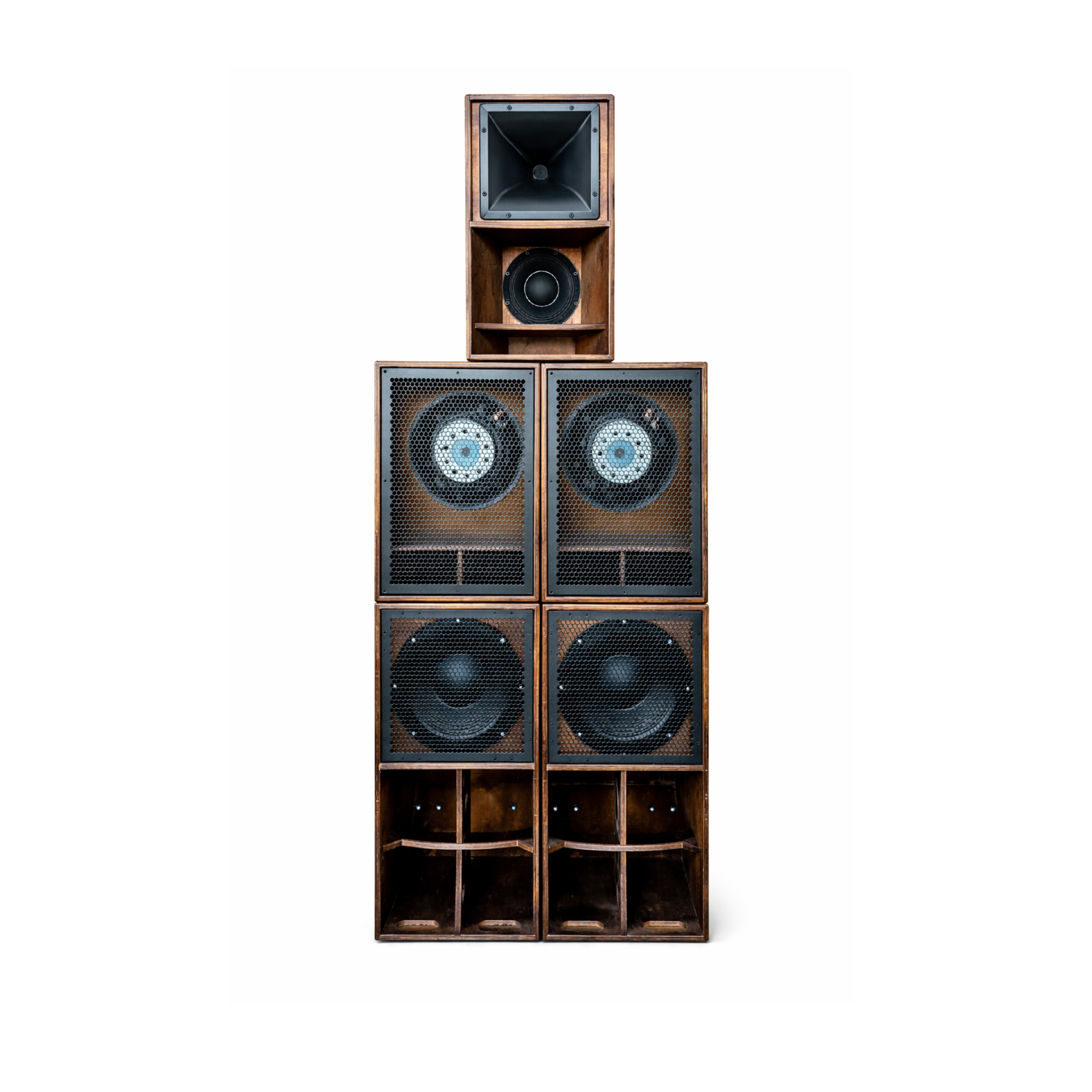

Faya 12-inch 4-Way System
Tax included. Shipping calculated at checkout
Production time is approx. 12 - 14 weeks
All portable systems and enclosures are made to order in our Cologne workshop. They are not held as finished stock.
Estimated production time is 12 - 14 weeks. Each unit is handcrafted with precision, and minor variations in finish may occur due to the nature of the manufacturing process.
Upon order confirmation, your system is placed into our production schedule. Manufacturing begins once it reaches its allocated production slot.
Production timelines are based on current capacity and component availability and may vary depending on order volume.
By placing an order, you acknowledge and accept this production process and timeline structure.
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
We offer a two-year warranty on all our products.
SPECIFICATIONS
- 4-way sound system architecture for full-range performance
- High-power 12″ transducers
- Deep and controlled low-frequency performance with fast transient response
- Punchy and warm mid-bass response
- Clear and detailed high frequencies
- Integrated wooden handles and rear-mounted heavy-duty pro wheels

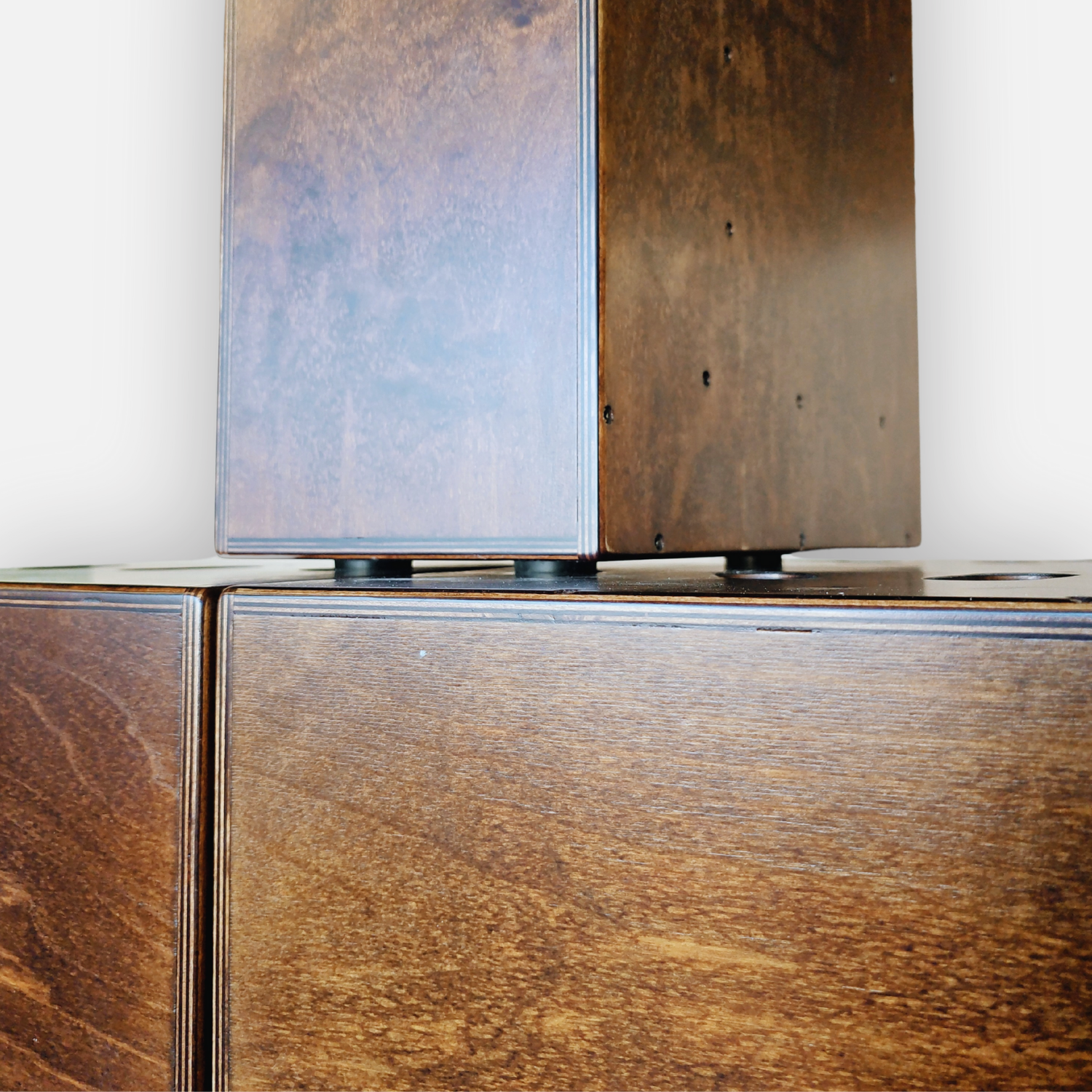

- Matching top tracking and captive rebates for secure stacking
- Compact design built for portability
- Designed and manufactured in Germany
Driver Size:
Scoop: 12" / Kick: 12" / MF: 8" / HF: 1.4"
Power Handling:
Scoop (2x): 2000W RMS, 4000W Program / Kick (2x): 2000W RMS, 4000W Program / MF: 200W RMS, 400W Program / HF: 110W AES, 220W Program
Impedance:
Scoop (2x): 4 Ohm / Kick (2x): 4 Ohm / MF: 8 Ohm / HF: 8 Ohm
Frequency Range:
Scoop: 40 - 120 Hz (-3dB) / Kick: 50 - 160 Hz (-3dB) / MF: 140 – 1.200 Hz (-3dB) / HF: 1.200 – 20 kHz (-3dB)
System Type:
Passive 4-way sound system, external amplification and DSP processing required (4 amplifier channels needed)
Connectivity:
Neutrik speakON® NL4 (+1/-1) on all enclosures
Hardware:
Scoop: Neutrik speakON® (+/-), Wooden handles, Rubber feet, Mounted heavy-duty pro wheels, Honeycomb black coated 1.5 mm steel grills with stamped edges
Kick: Neutrik speakON® (+/-), Rubber feet, Honeycomb black coated 1.5 mm steel grills with stamped edges
Top: Neutrik speakON® (+/-), Wooden handles, Rubber feet, Damping material
Material:
15mm precision-cut WISA® birch plywood, CNC manufactured
Dimensions:
Scoop: H/80 cm, W/39 cm, D/ 50 cm.
Kick: H/52.50 cm, W/39 cm, D/50 cm.
Top: H/62.0 cm, W/35.5 cm, D/39.5 cm
Weight:
130 kg
Finish: Available in Raw, Clear, or Vintage Oak finish.

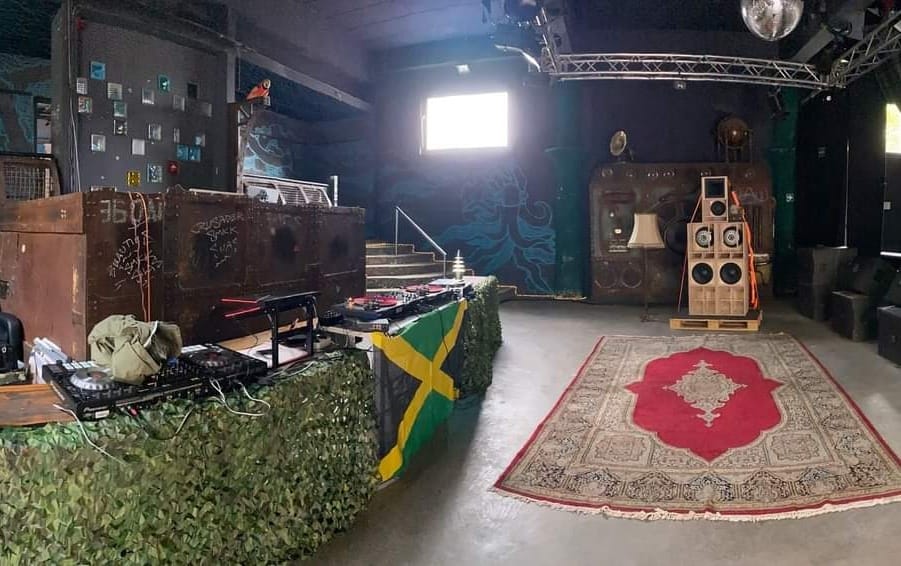

- Bars
- Venues and clubs
- Outdoor gatherings
- For up to 200 people
