VAS SWG-6 HF Bundle
Tax included. Shipping calculated at checkout
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
We offer a two-year warranty on all our products.
SPECIFICATIONS
- Frequency response: 700 Hz – 20 kHz
- Designed for 1.4" compression driver
- Compact fiberglass construction for stability and low resonance
- Optimized flare geometry for smooth, controlled dispersion
- Angled slotted bolt pattern (Ø99–103 mm) for flexible mounting
- Ideal for mid-top and high-frequency loudspeaker enclosures
- Tested and verified by VAS Audio Germany

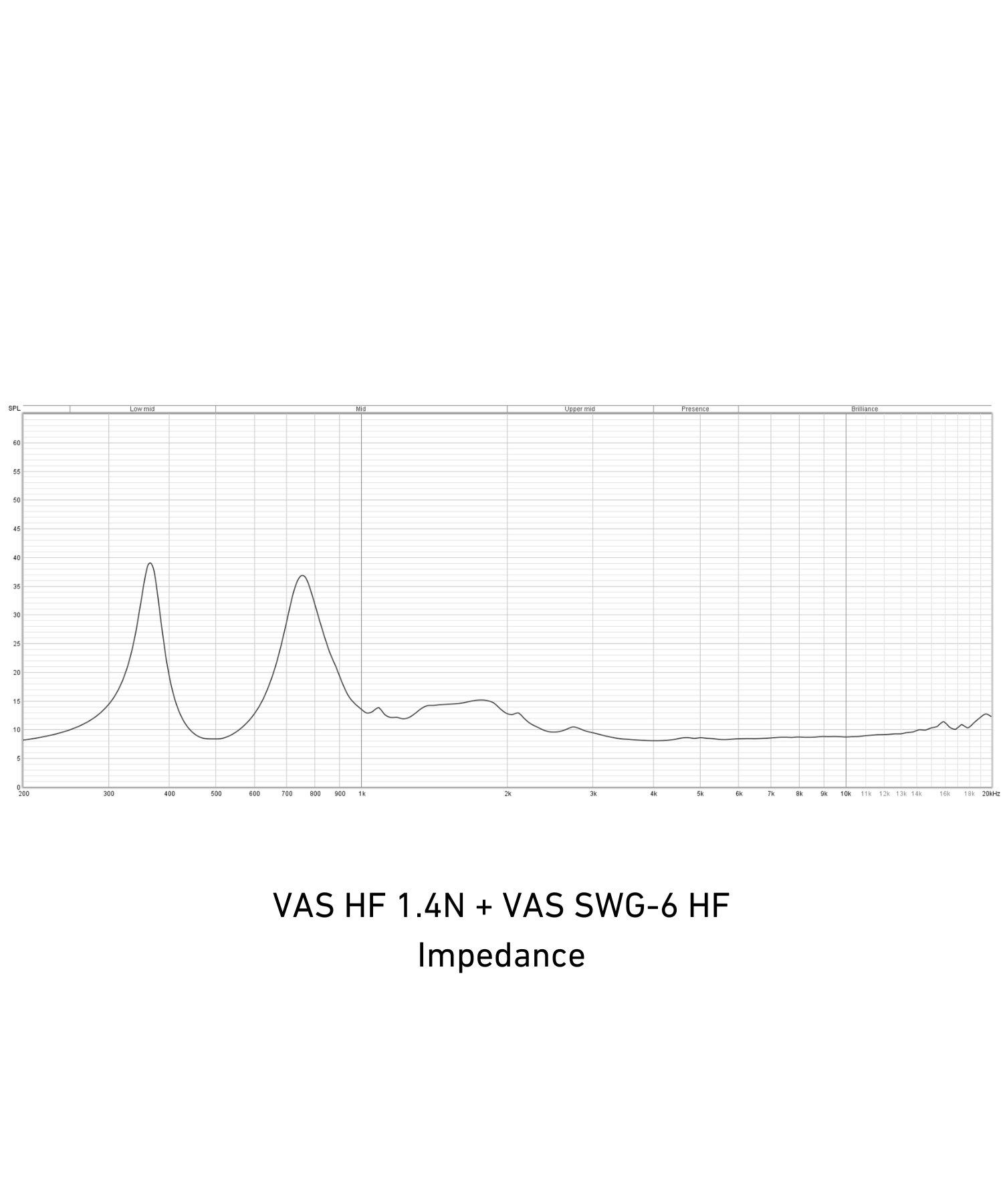

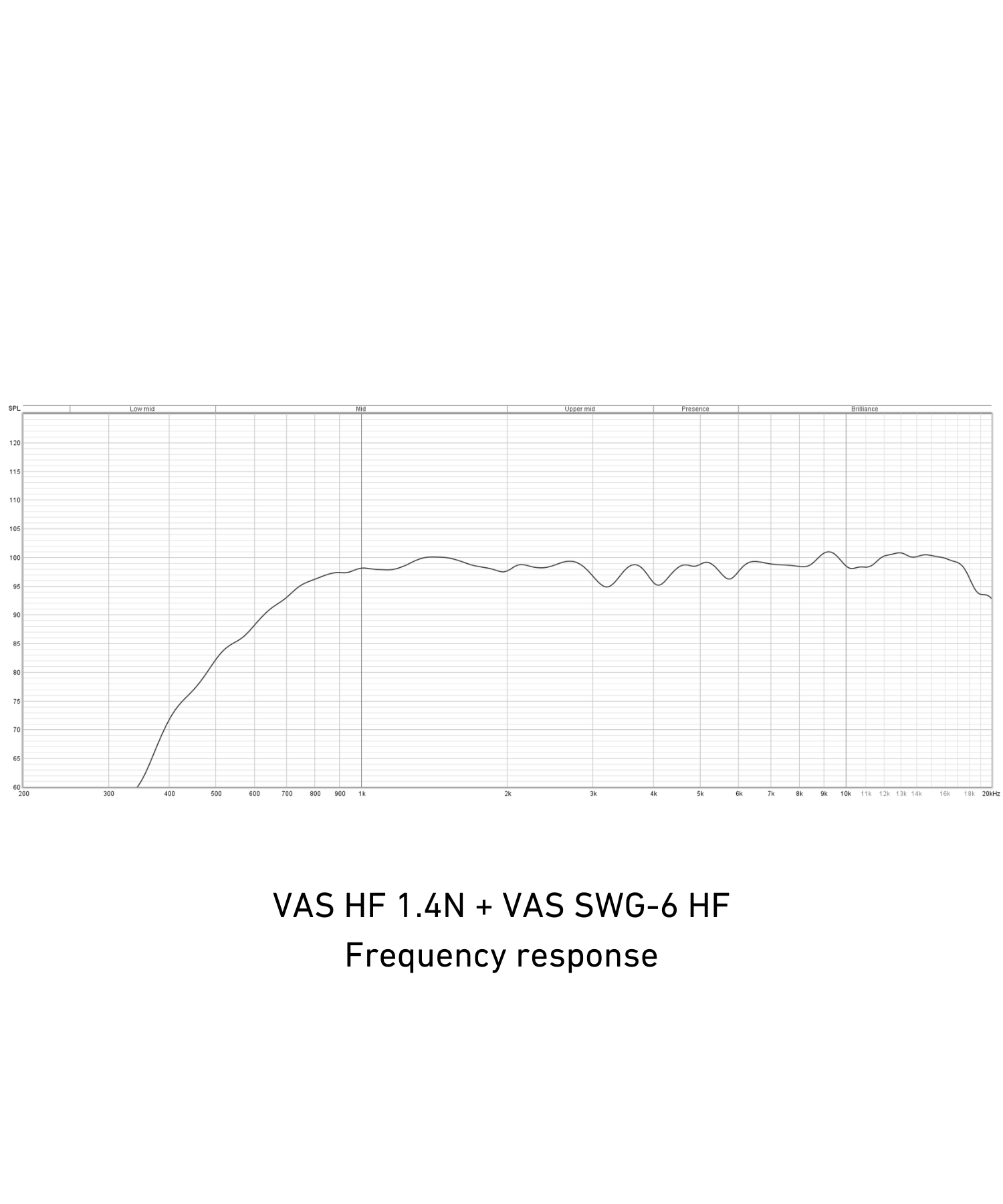

* Frequency response shown in the measurement section is made in combination with the VAS HF 1.4N Compression Speaker Driver.
Driver Size:
Dual 1.4" Compression Drivers
Frequency Range:
500 Hz - 20 kHz
Throat Diameter:
1.4" / 38mm
Colour:
Black
Material:
Fiber glass
Dimensions:
L: 33 cm
W: 19.5 cm
D: 19.5
Mounting Depth: 18.5 cm
Mounting Bolt Specifications:
Angled slotted bolt holes, fits up to 6.5mm bolts with a radius of 99mm - 103mm
Mounting Hole Specifications:
8 x 6mm mounting holes with 11mm head recess, 3mm deep
Driver Size:
1.4-inch HF Compression Driver
Power Handling:
80W Nominal / 160W Program
Voice Coil Diameter:
75mm / 3"
Impedance:
8 Ohms
Frequency Range:
500 Hz - 20 kHz
Recommended Crossover Frequency:
800 Hz with BW24
Throat Diameter:
35.6mm / 1.4"
Flux Density:
1.9 T
Sensitivity (1W/1M):
110 dB
Colour:
Black
Material:
Winding Material: Edge-wound Aluminum
Former Material: Kapton
Distortion Reduction: Copper Ring
Diaphragm Material: Titanium
Magnetic Material: Neodymium
Weight:
2.28 kg
- Line-array style top enclosures
- Point-source PA top enclosures
- Front-loaded mid-high top enclosures
- Horn-loaded mid-high enclosures
- Kick-top / mid-high hybrid enclosures
- Compound horns enclosures
