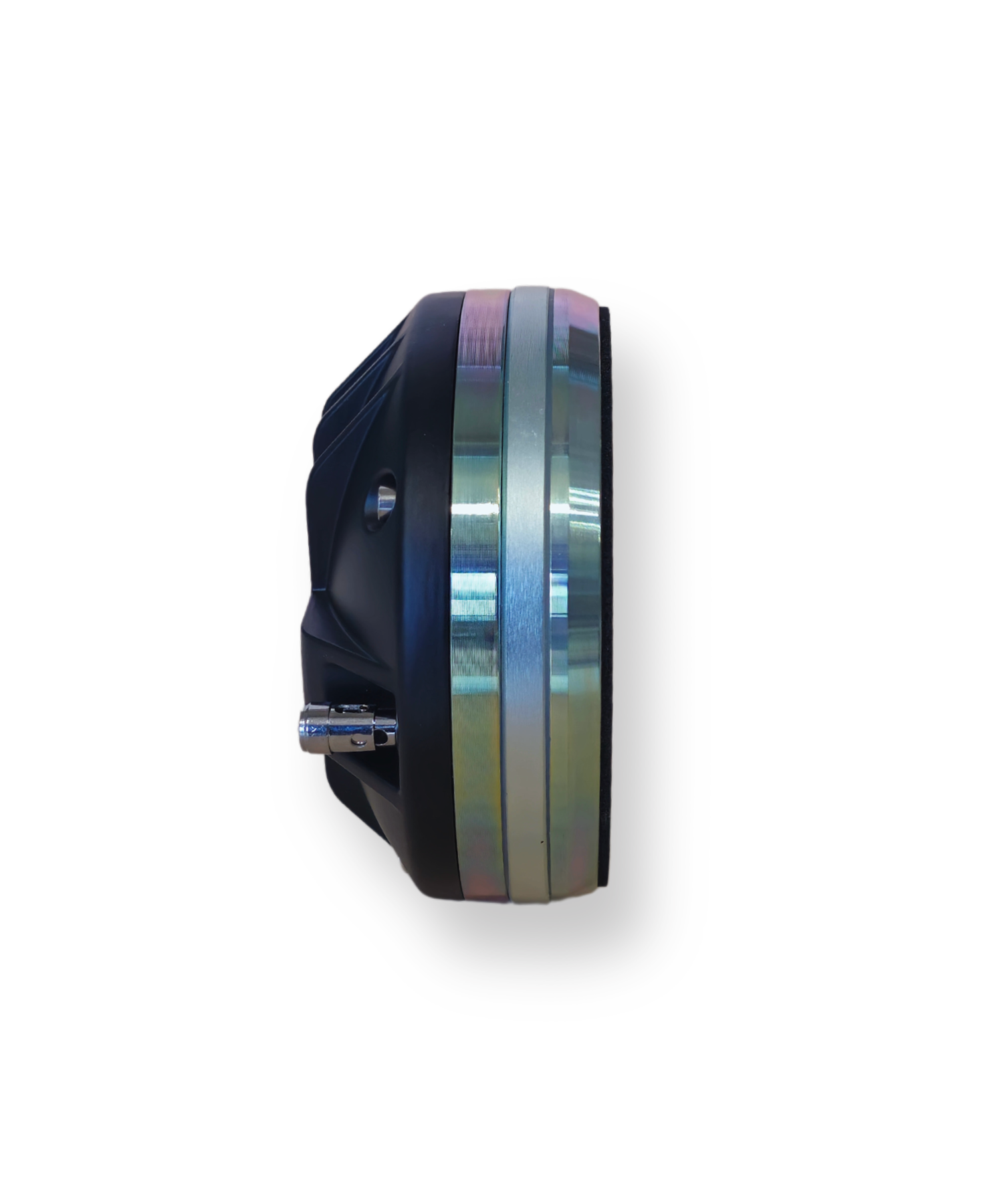

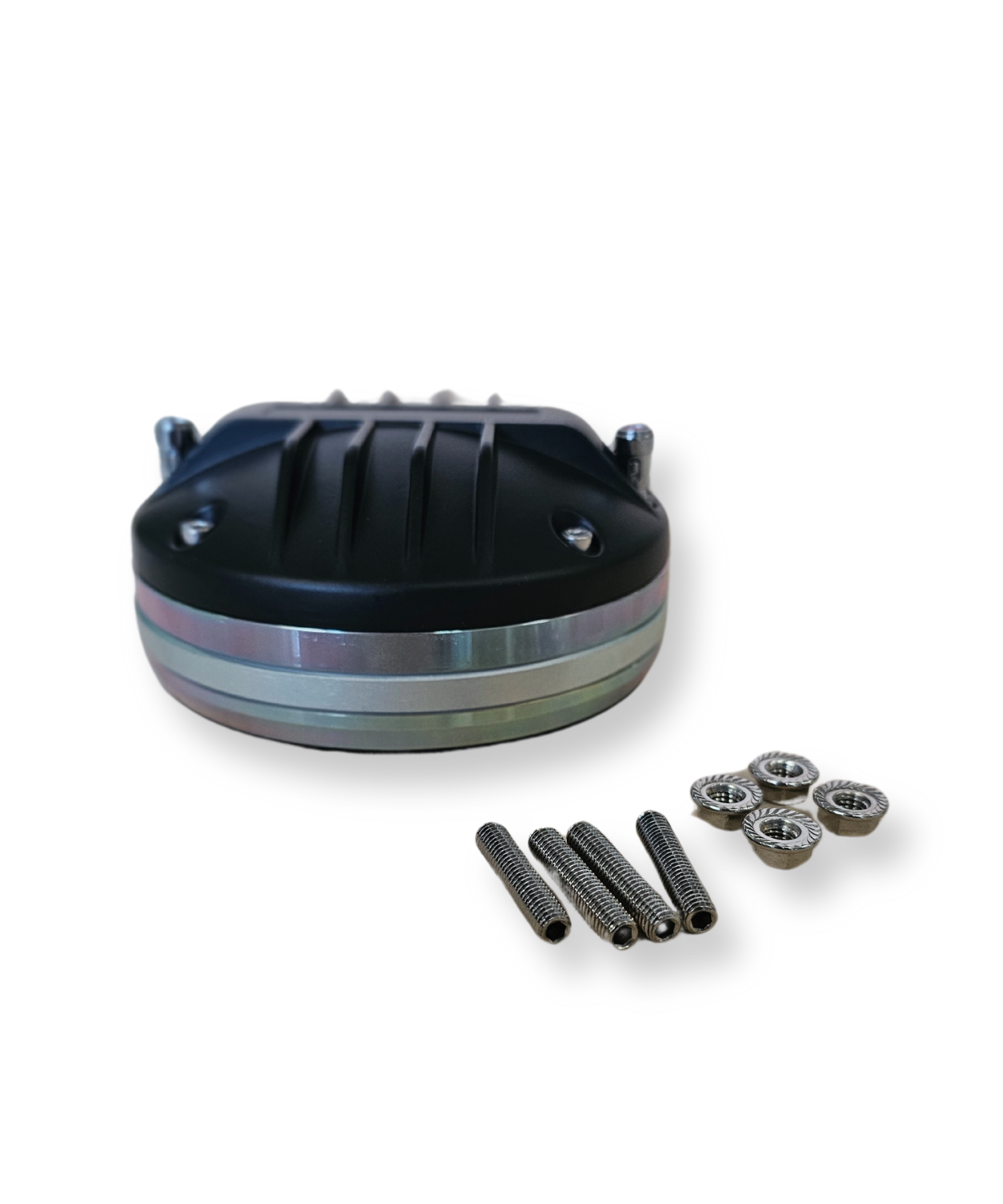

VAS HF 1.4N Compression Speaker Driver
Tax included. Shipping calculated at checkout
Shop with trust. Check out our Shipping Policy and Refund Policy for all the details.
We offer a two-year warranty on all our products.
VAS HF 1.4N Compression Speaker Driver
Sale price€239,00 EUR
SPECIFICATIONS
- Lightweight neodymium magnet
- Titanium diaphragm for crisp and accurate high frequencies
- Copper ring for distortion reduction
- Edge-wound aluminum voice coil
- Seamless integration with VAS waveguides and horns
- Live sound setups, studio environments, and high-performance applications
- VAS QC certified for European standards
Driver Size:
1.4-inch HF Compression Driver
Power Handling:
80W Nominal / 160W Program
Voice Coil Diameter:
75mm / 3"
Impedance:
8 Ohms
Frequency Range:
500 Hz - 20 kHz
Recommended Crossover Frequency:
800 Hz with BW24
Throat Diameter:
35.6mm / 1.4"
Flux Density:
1.9 T
Sensitivity (1W/1M):
110 dB
Colour:
Black
Material:
Winding Material: Edge-wound Aluminum
Former Material: Kapton
Distortion Reduction: Copper Ring
Diaphragm Material: Titanium
Magnetic Material: Neodymium
Weight:
2.28 kg
- Line-array style top enclosures
- Point-source PA top enclosures
- Front-loaded mid-high top enclosures
- Horn-loaded mid-high enclosures
- Kick-top / mid-high hybrid enclosures
- Compound horns enclosures
