HOQS EU SWG-6 HF Waveguide
Tax included. Shipping calculated at checkout
The HOQS EU SWG-6 Horn Waveguide is engineered for high-frequency performance, delivering clear and precise sound across a frequency range of 700 Hz to 20 kHz. Equipped with a single 1.4" compression driver and crafted from durable fiberglass, this waveguide ensures controlled and consistent sound output.

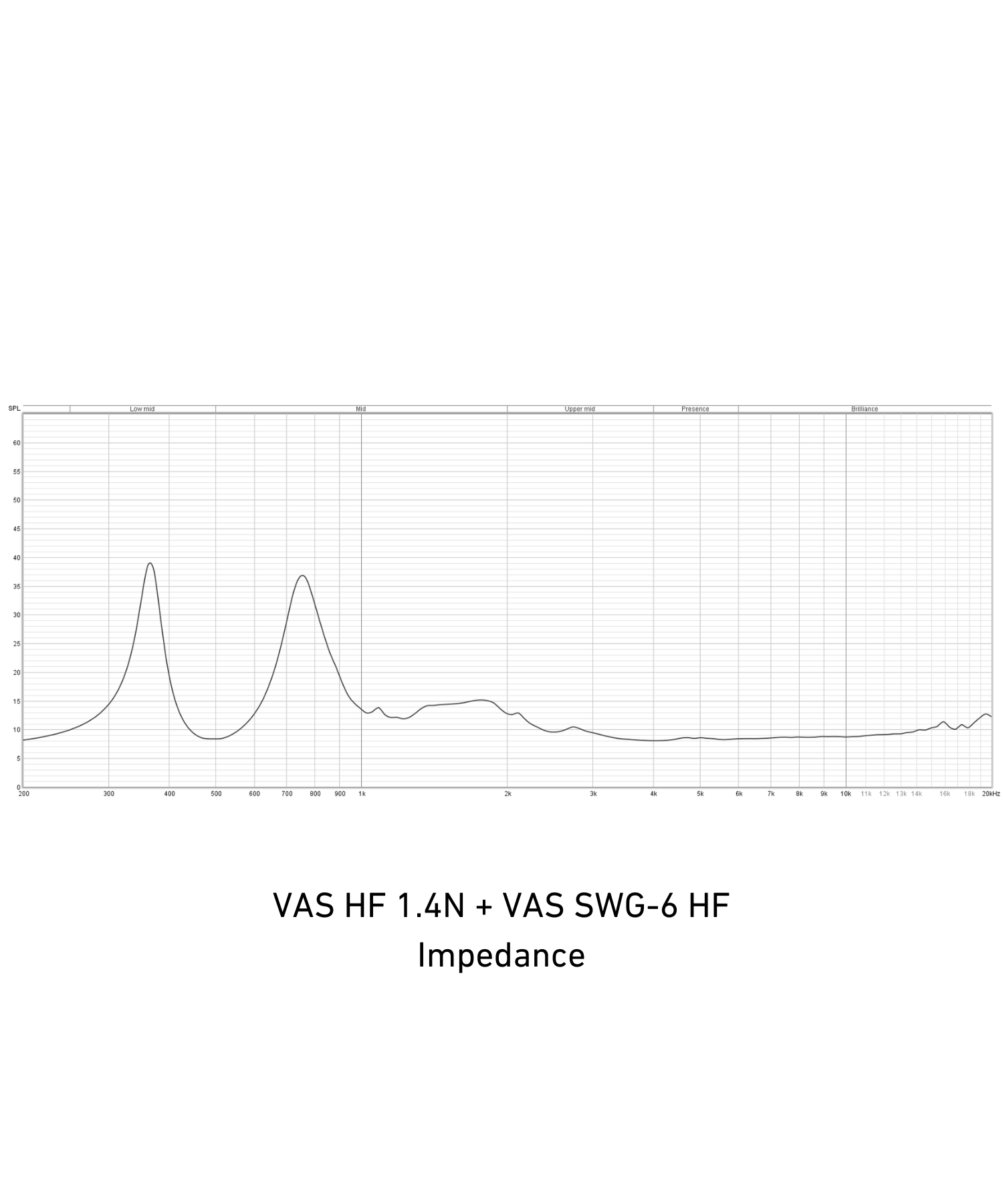

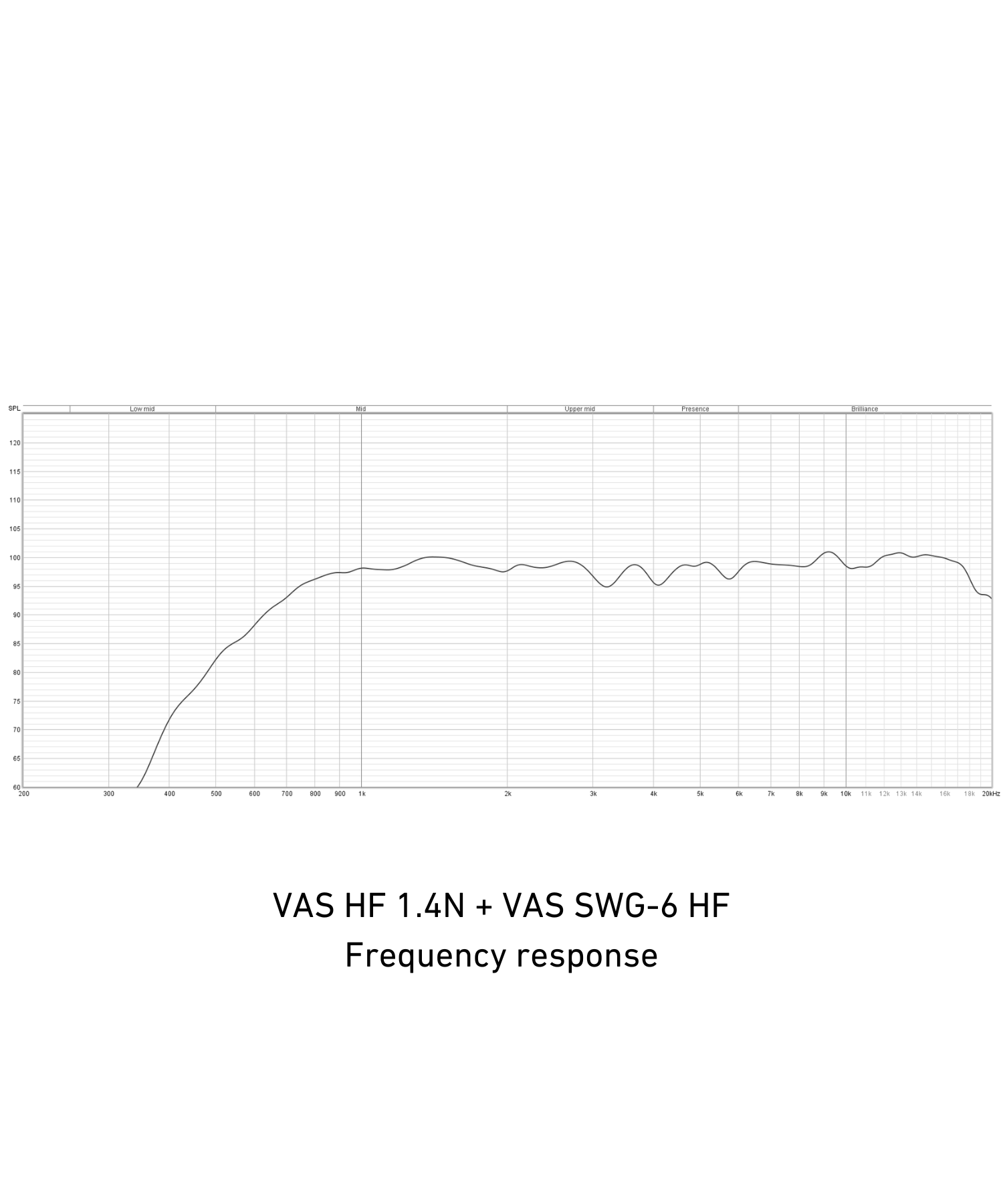

* The frequency response shown in the measurement section is in combination with the HOQS EU HF143N.
HOQS EU Horns & Waveguides

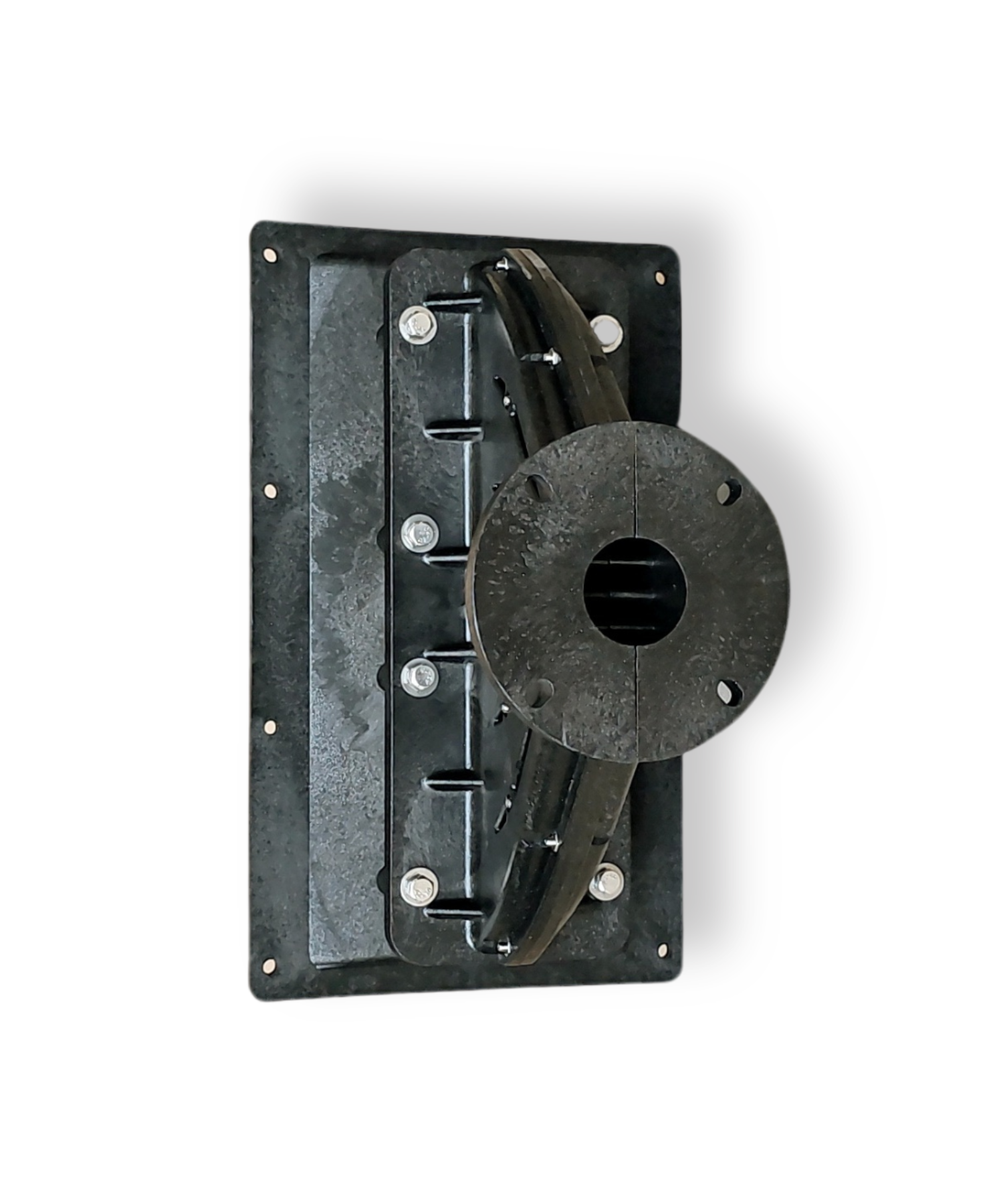

HOQS EU SWG-6 Horn Waveguide
The HOQS EU SWG-6 Horn Waveguide is crafted to provide top-notch high-frequency audio performance and precise sound clarity for professional audio systems. This waveguide, with its single 1.4-inch compression driver, spans a frequency range from 700 Hz to 20 kHz, delivering accuracy and efficiency across various audio applications. Constructed with durable fiberglass, the HOQS EU SWG-6 waveguide is both lightweight and robust, making it ideal for installations that require a balance of portability and sound quality.
Engineered for flexibility, the HOQS EU SWG-6 Horn Waveguide includes angled slotted bolt holes accommodating bolts up to 6.5mm, with a radius range of 99mm to 103mm. Its throat diameter of 1.4 inches ensures compatibility with various speaker setups, enhancing sound directivity and reducing distortion in professional audio environments.
With its high sensitivity and optimal sound dispersion, this waveguide is perfect for audio professionals and enthusiasts alike who need a reliable solution for high-frequency clarity. Whether used in live sound setups or studio environments, the HOQS EU SWG-6 Horn Waveguide is designed to elevate the audio quality.
Single 1.4" Compression Driver
700 Hz - 20 kHz
1.4" / 38mm
Black
Fiber glass
L: 33 cm
W: 19.5 cm
D: 21 cm
Mounting Depth: 20 cm
Angled slotted bolt holes, fits up to 6.5mm bolts with a radius of 99mm - 103mm
8 x 6mm mounting holes with 11mm head recess, 3mm deep
