In high-output sound systems, low-frequency drivers are rarely pushed to their limits by peak power alone. The real challenge lies in maintaining predictable mechanical and electrical behavior under sustained load, high excursion, and long duty cycles.
Touring systems, outdoor events, and club installations demand drivers that can operate for hours without significant changes in response, distortion, or efficiency. In these conditions, cone stability, thermal management, and motor linearity become more critical than headline power ratings.
The VAS 18-1700 series was developed with this reality in mind. So not to chase peak numbers, but to deliver consistent low-frequency performance under real operating conditions.
Carbon Cone Technology: Mechanical Stability Under Load

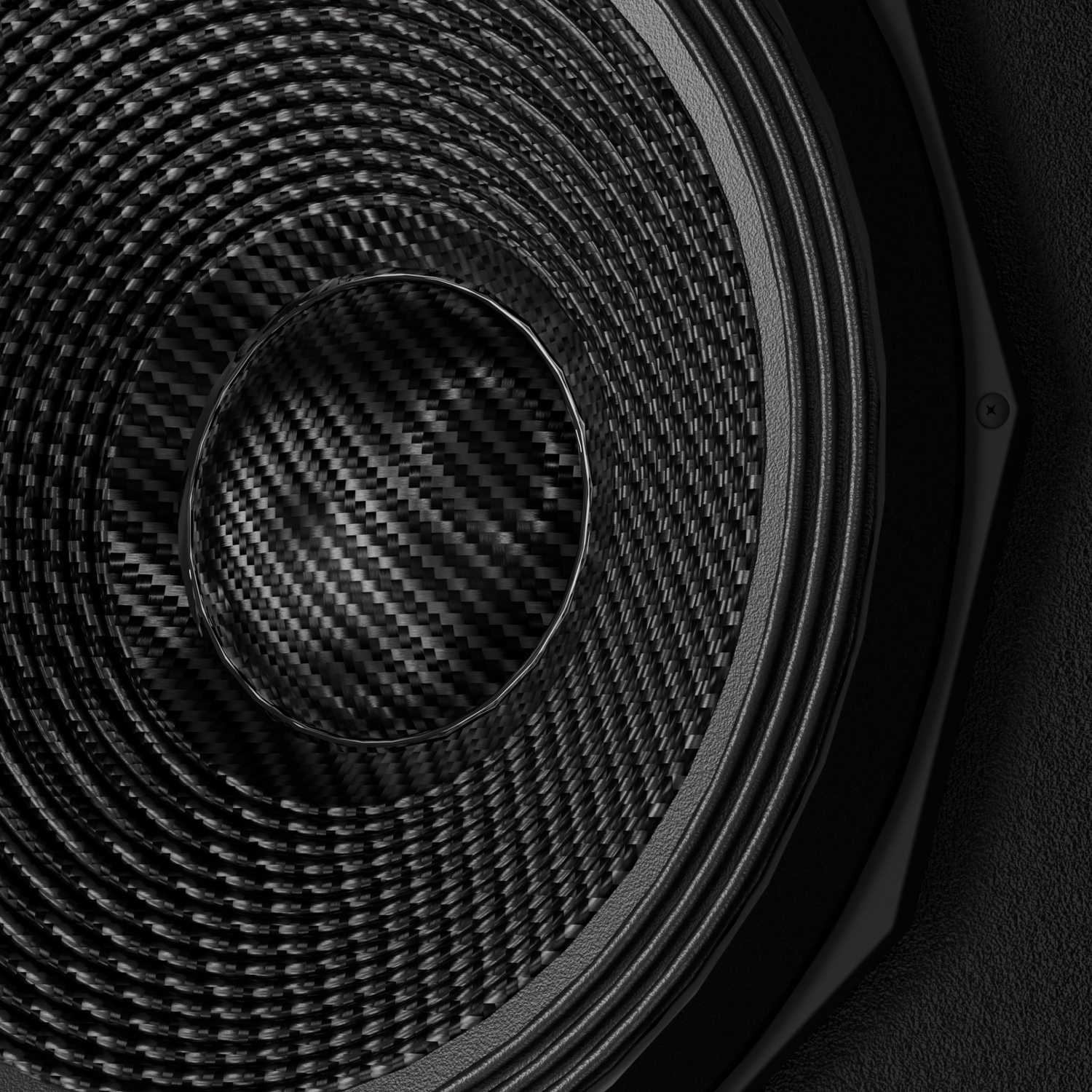

One of the defining elements of the VAS 18-1700 drivers is the use of an ultra-strong carbon cone and dust cap.
In high-SPL applications, conventional paper cones can begin to flex and deform at high excursion levels. This deformation introduces non-linear behavior, reduced transient accuracy, and increased distortion, especially in loaded enclosures where acoustic pressure on the cone is significant.
Carbon fiber offers:
- Higher stiffness-to-weight ratio
- Reduced cone deformation at high excursion
- Improved control during rapid acceleration and deceleration
The result is cleaner bass reproduction and more precise transient response, even when the driver is pushed hard. In the VAS 18-1700 series, the carbon cone is a structural choice, not a cosmetic one, designed to preserve mechanical integrity where it matters the most.
Thermal and Power Handling: The 5″ Copper Voice Coil
Sustained low-frequency operation generates heat quickly. As temperature rises, power compression increases and driver behavior changes, often long before mechanical limits are reached.
Both VAS 18-1700FC and 18-1700NC are built around a 125 mm (5″) high-temperature inside/outside copper voice coil, designed to improve:
- Thermal stability
- Heat dissipation
- Consistency during long operating periods
This large-format coil allows the driver to handle high continuous program material with reduced thermal stress, making it suitable for festivals, touring rigs, and fixed installations where systems are expected to run at high output for extended periods.
Low Distortion at High Drive Levels: Aluminium Demodulating Ring
Bass distortion is often overlooked, but in high-power systems it plays a critical role in perceived clarity and definition.
The VAS 18-1700 series incorporates an aluminium demodulating ring in the motor structure to reduce inductance modulation. This helps maintain a more stable magnetic field as the voice coil moves, resulting in:
- Lower harmonic distortion
- Improved control at high excursion
- Cleaner low-frequency reproduction under load
This becomes especially important in multi-cabinet systems, where distortion artifacts can accumulate and affect overall system coherence.
Wide Usable Bandwidth
With a usable frequency response of 30 Hz to 1000 Hz, the VAS 18-1700 drivers are intentionally versatile.
This wide operating range allows the driver to be used across multiple enclosure concepts, including:
- Reflex subwoofers
- Bandpass designs
- Horn-loaded and rear-loaded horn systems
Rather than forcing the system into a narrow application window, the driver provides flexibility to adapt to different cabinet geometries and system architectures. The driver supports the system design, not the other way around.
Ferrite vs Neodymium: Same Design Philosophy, Different Constraints
The VAS 18-1700 series is available in two versions:
VAS 18-1700FC (Ferrite)
Built with a high-grade Y35 ferrite magnet, offering high thermal mass and long-term stability. This version is well-suited for fixed installations and heavy-duty touring systems where weight is less critical than absolute robustness.
VAS 18-1700NC (Neodymium)
Utilizing a high-temperature SH-grade neodymium magnet, this version delivers the same acoustic behavior in a lighter, more transport-friendly format. It is ideal for touring systems where logistics, handling, and total system weight are important considerations.
Both versions follow the same motor and suspension design philosophy, ensuring consistent performance across applications.
The VAS 18-1700 drivers have been road-tested in full systems at large-scale events, including Rototom Sunsplash, Reggae Geel, and No Logo Festival, to name a few.
These environments provide long operating hours, high ambient temperatures, and continuous low-frequency program material, which are all conditions that quickly reveal weaknesses in driver design. Feedback from real use informed final tuning and validation.
Quality Control and Consistency
For high-output systems, consistency between drivers is essential, especially when multiple units are used together.
Each VAS 18-1700 driver undergoes VAS QC certification to ensure compliance with European standards and to maintain predictable behavior across production batches. This focus on quality control supports system reliability and repeatability in professional applications.
For whom is the VAS 18-1700 Series designed?
The VAS 18-1700FC and 18-1700NC are designed for:
- Touring sound systems
- Clubs and permanent installations
- Outdoor and festival systems
They are intended as core components for high-SPL, system-oriented designs where performance consistency matters.
VIEW VAS 17-1800FC SPECIFICATIONS →
