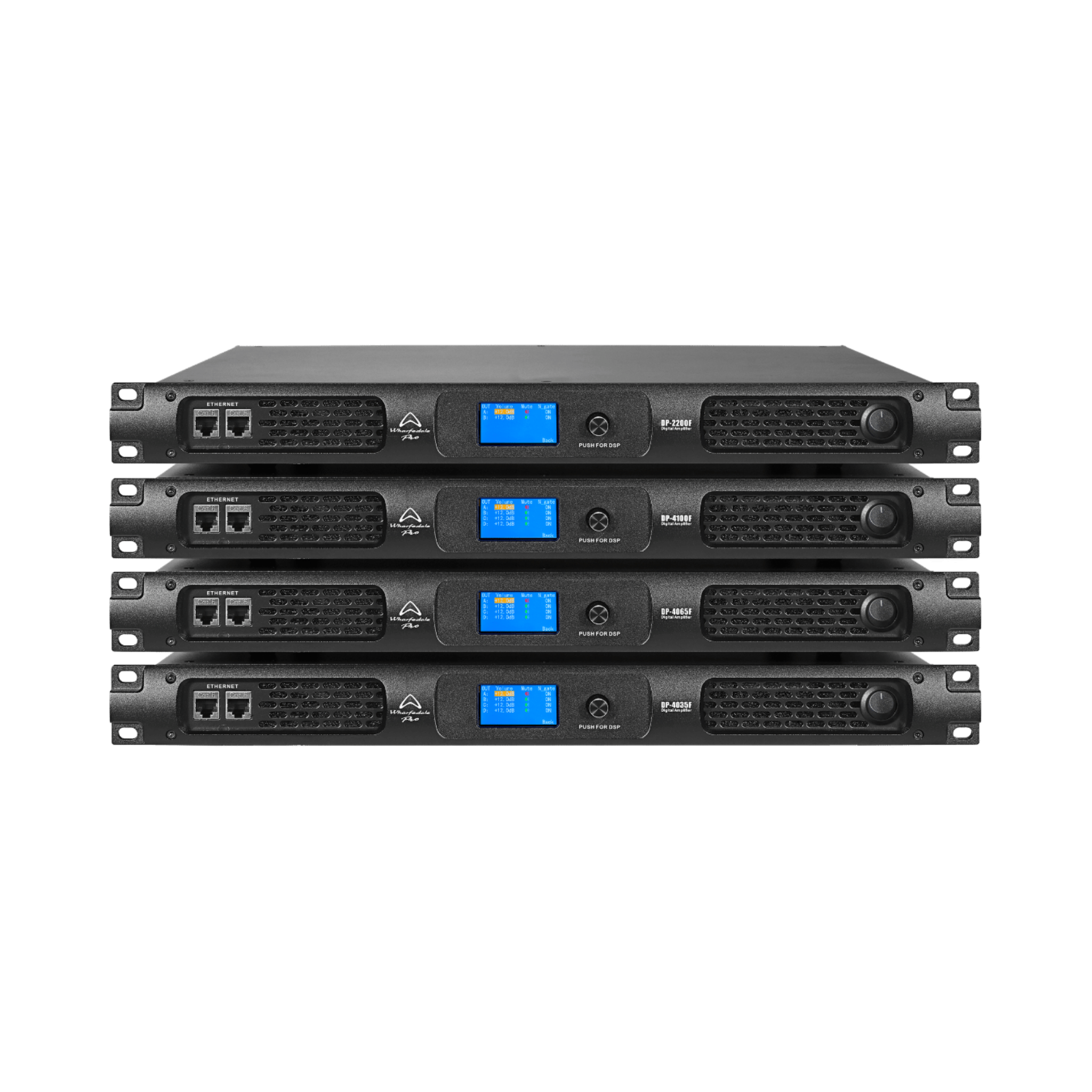

Wharfedale Pro DP-2200F

• 2-Channel class-D amplifier stable down to 2 Ω
• High output power up to 3400 W per channel and 9520 W bridged
• Integrated DSP with FIR processing
• Remote configuration via DSP Controller software
• AES/EBU digital input and balanced XLR analog inputs
• Compact 1U rack design
• 70 V & 100 V Hi-Z support
• Thermal, overload, DC, and power protection circuits

Power Amplifier Class:
Class D

Power Handling:
2 x 2000 W (8Ω), 2 x 3400 W (4Ω), 2 x 4760 W (2Ω)
1 x 4000 W (16Ω Bridged), 1 x 6800 W (8Ω Bridged), 1 x 9520 W (4Ω Bridged)

Control:
DSP Controller Software / Front Panel

Audio input/output:
Audio input: 4 x XLR, lockable / 1 x AES/EBU
Audio outputs: 4 x Speakon NL4 (2 x fully & 2 x partially occupied)

DSP Features:
DSP with FIR

100V Hi-Z:
2 x 3400 W

70V Hi-Z:
2 x 2400 W

Output RMS Voltage (V):
126.5 V

Maximum input Level:
21 dBu (8.7 Vrms)

Default Gain (Rated power, 1 kHz) (dB):
35 dB

Gain (Rated Power, 1 kHz):
35 dB

THD+N:
Typical : 0.05% (10% Rated Power, 8 Ω)

Crosstalk:
≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω)

Frequency Response:
Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω)

Input Impedance:
20 kΩ (Balanced), 10 kΩ (Unbalanced)

Damping Factor:
≥1000 (20 Hz-200 Hz, 8 Ω)

SNR:
≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω)

Protection:
Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control

Main Power:
90~260 V AC,50/60 Hz

Included Accessory:
AC Cable, User Manual

Material:
1U steel chassis, aluminum front panel

Mounting Type:
1U rackmount

Dimensions:
Unpacked (mm): 45 (H) x 483 (W) x 376 (D)
Packed (mm): 125 (H) x 510 (W) x 565 (D)

Weight:
9.3 kg (nett)
11.2 kg (gross)
