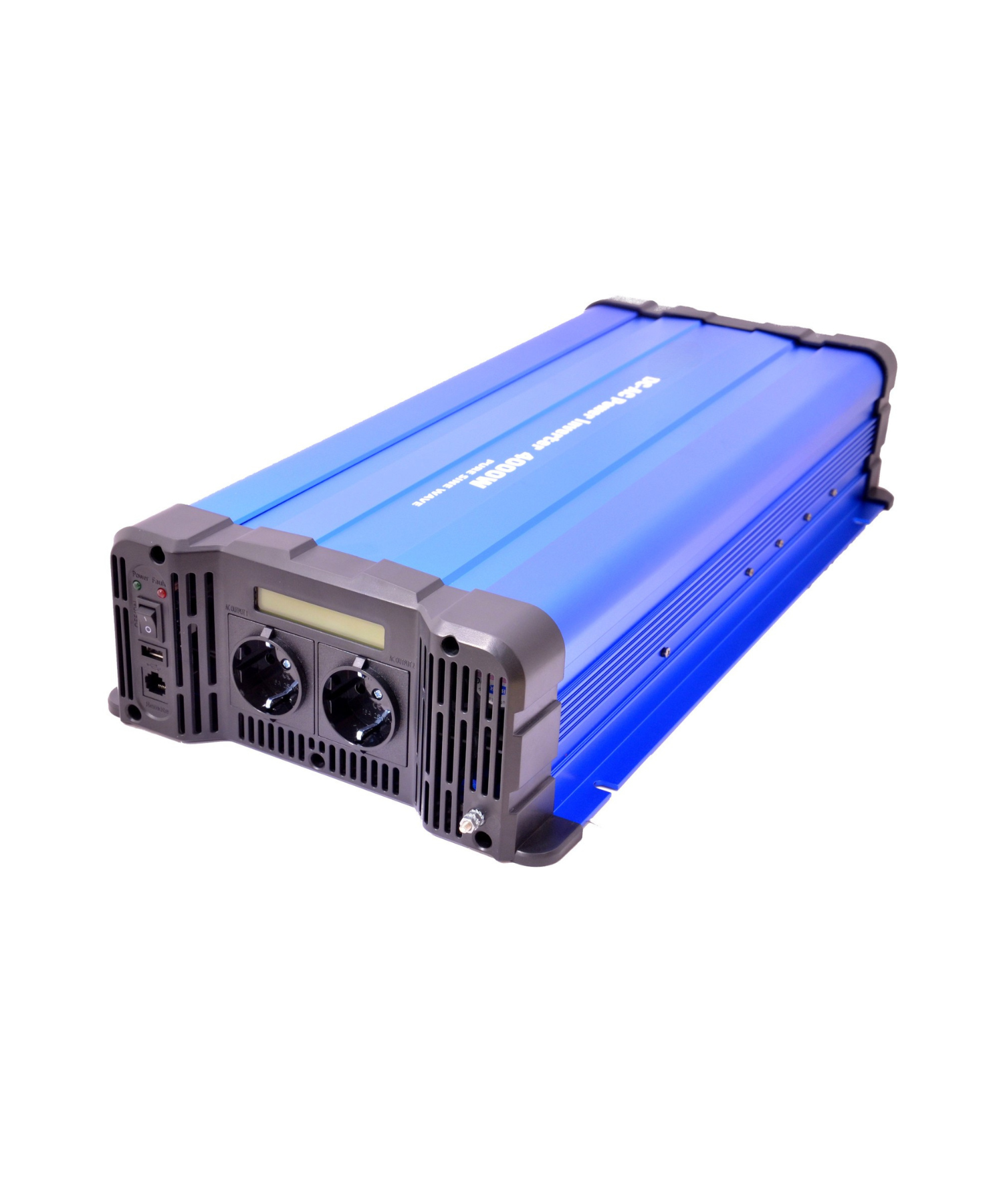

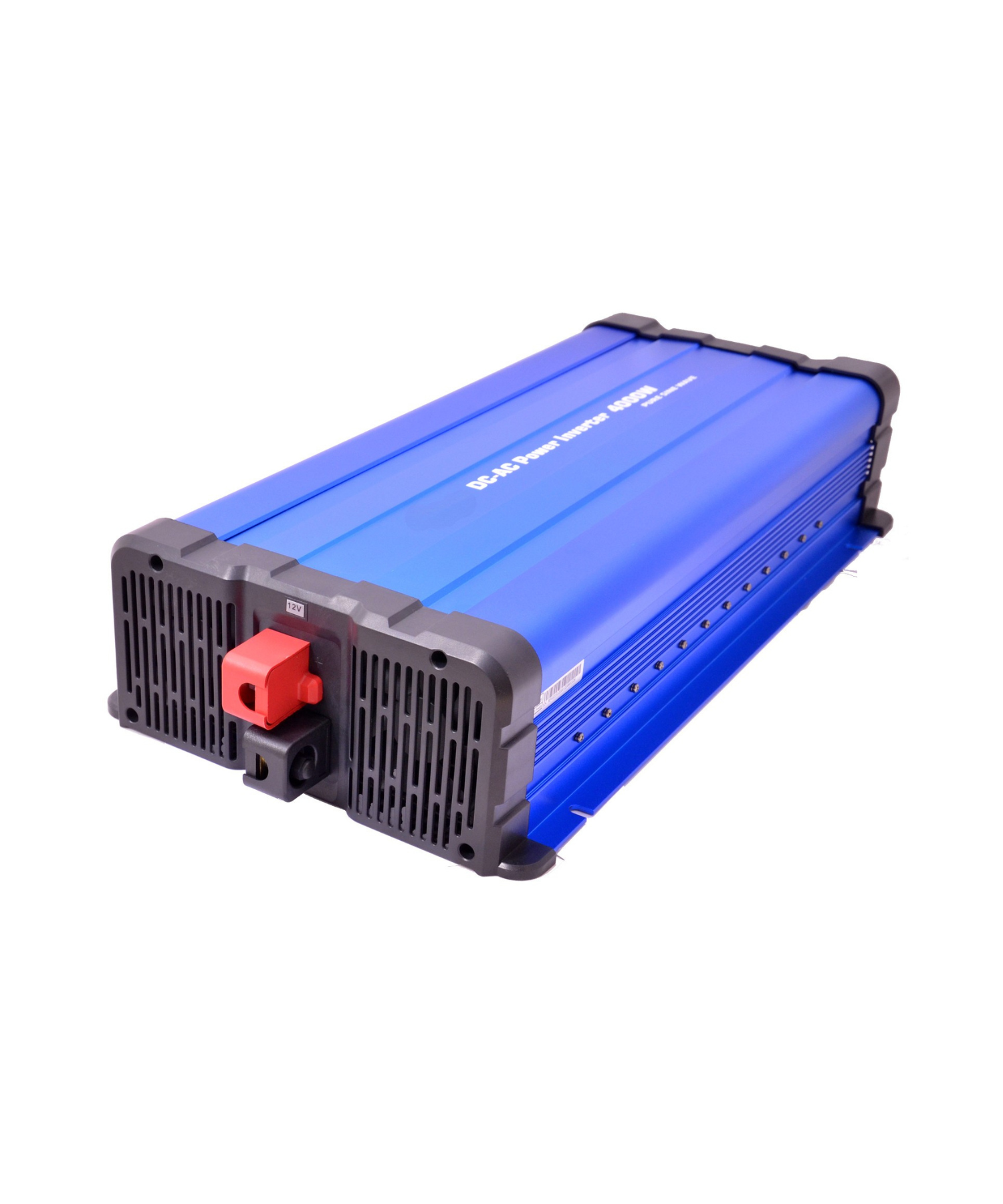

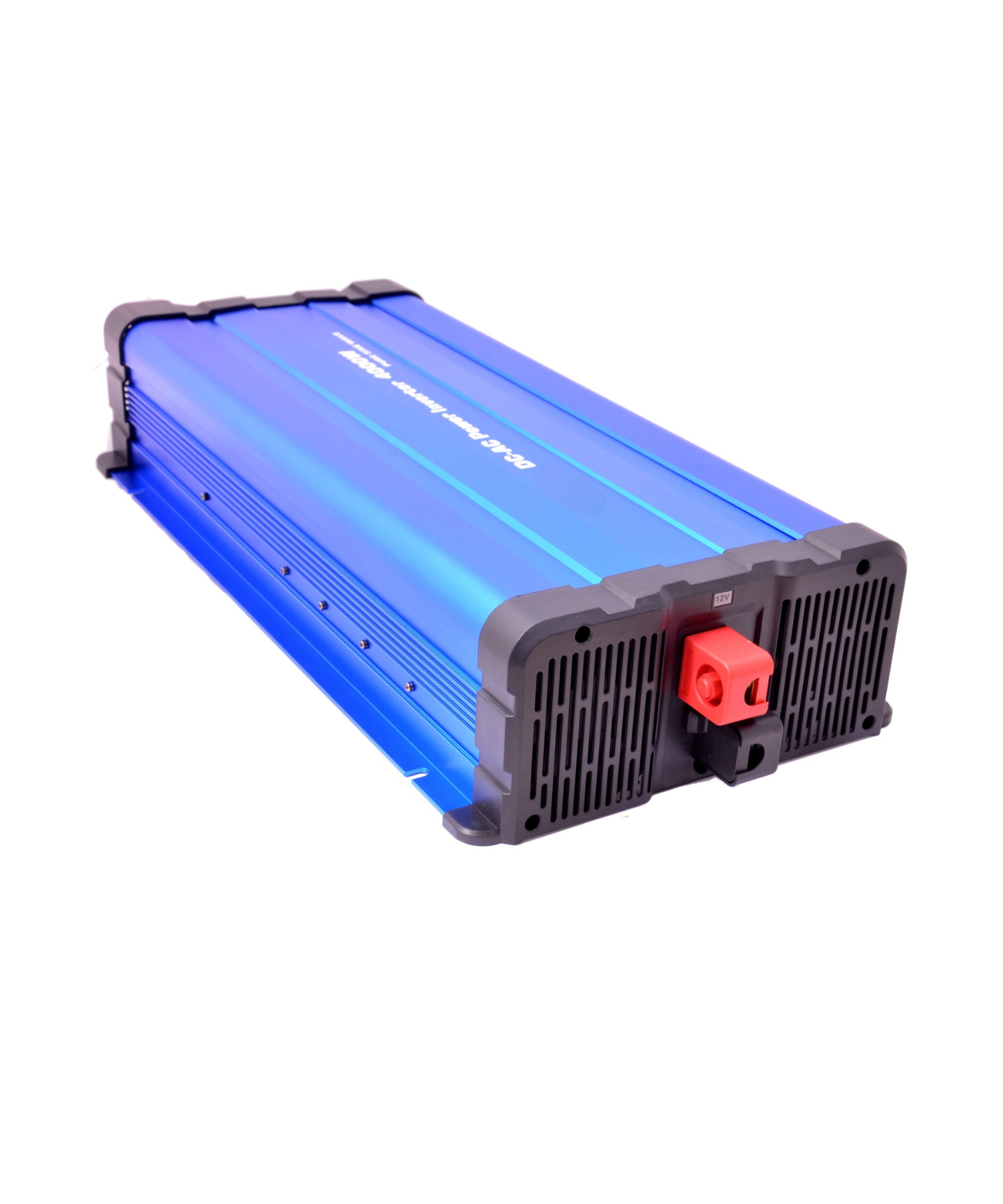

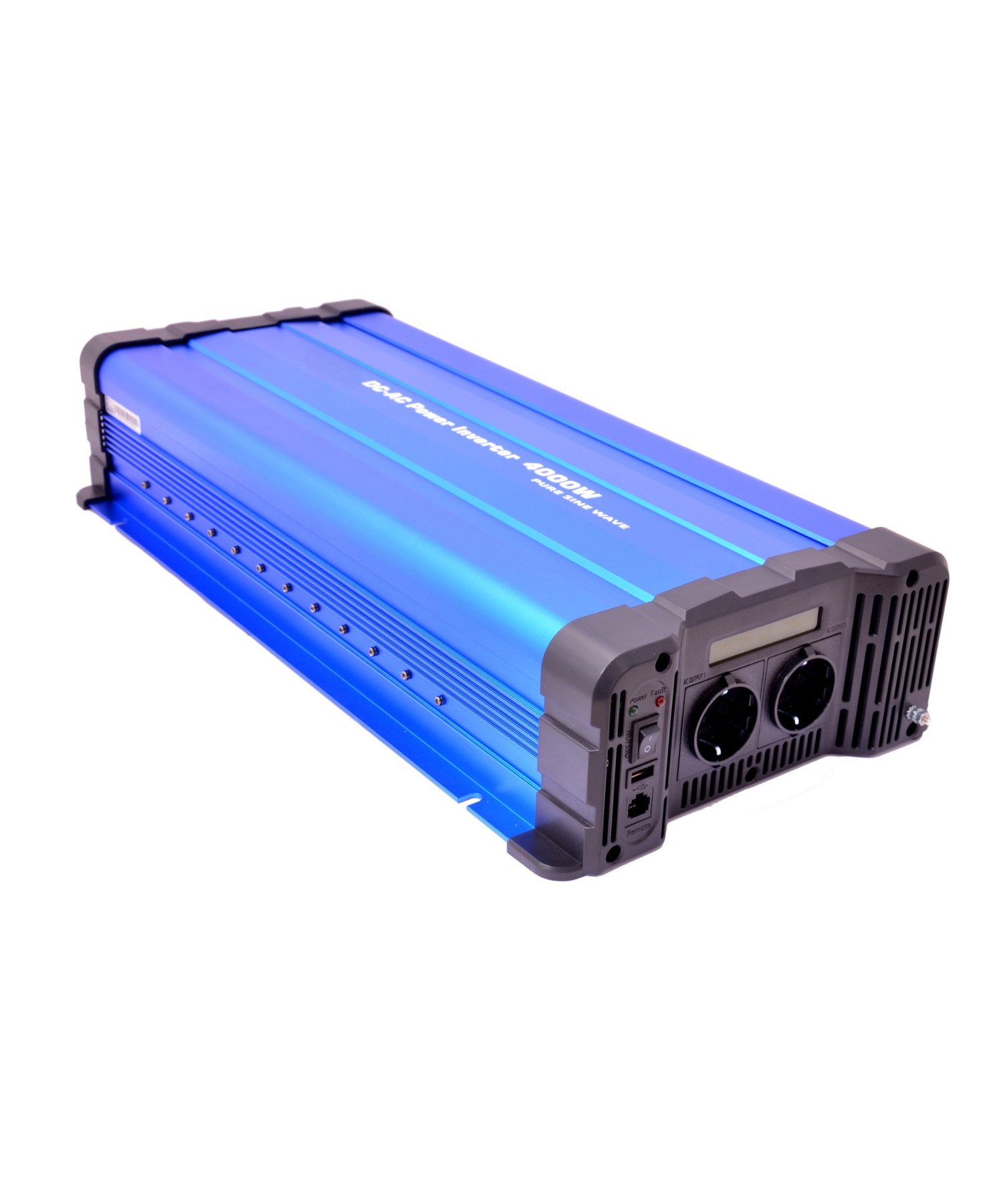

Transformateur extérieur VAS FS4000D

• Compatible with Simba and Faya sound systems
• Converts 12V DC battery power to 230V AC (50 Hz)
• Delivers up to 4000W output power
• Compact and road-ready (8kg)
• Certificates: Converter, CE, RoHS; E8 production according to DIN ISO 9001:2000
• Suitable for LiFePO4 (lithium), lead, gel or AGM batteries

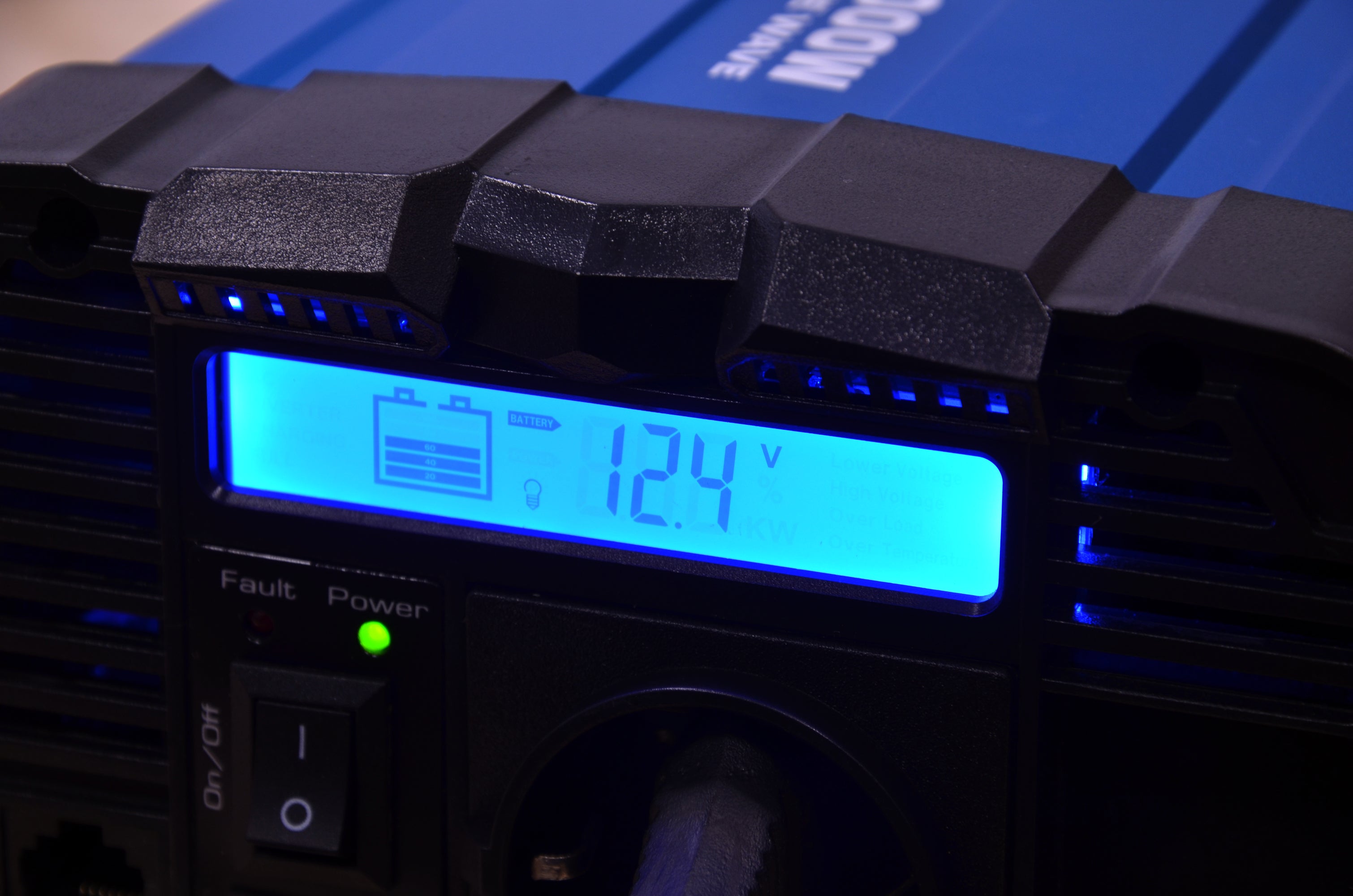

12V 4000W voltage converter with digital display

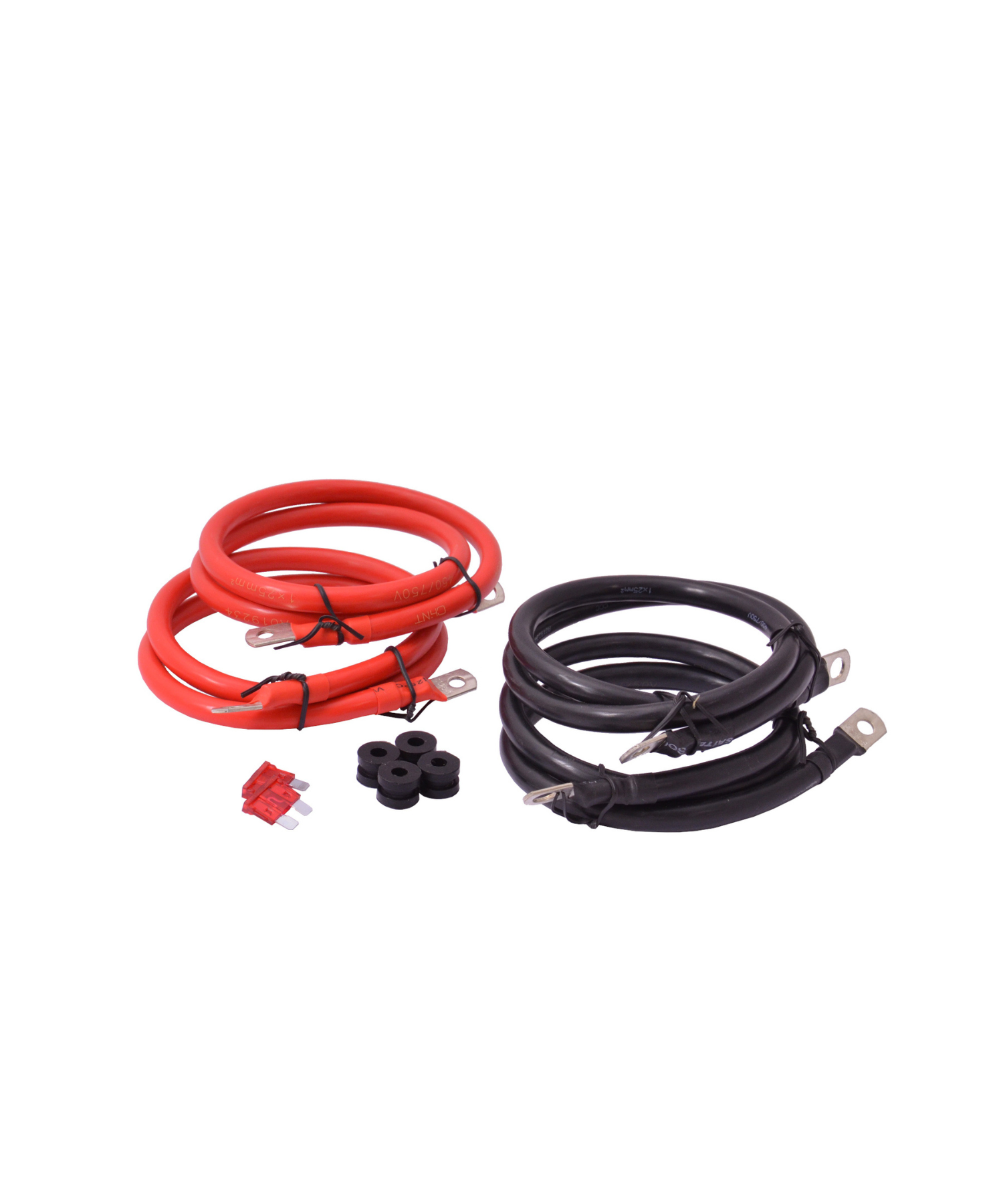

DC connection cable approx. 60cm

Operating instructions with wiring diagram

❌ BATTERY NOT INCLUDED!
Tested with a 280Ah LiFePO4 battery. Suitable for lithium, lead, gel, or AGM battery types.

• 5W–20W: Mobile phone, siren unit, USB chargers
• 20W–60W: Audio preamp, headphone amp, Raspberry Pi FX unit
• 60W–120W: DJ controller, turntable (Technics 1210 uses ~11W), CDJ
• 100W–200W: Laptop, audio interface, effects rack
• 200W–500W: 2-channel mixer, active monitor speaker (small)
• 400W–1000W: Amplifier (mid-range, depending on load), active tops
• 600W–1200W: Kick-bin or upper-bass unit (e.g., Simba Kick or Faya Kick)
• 1000W–1600W: 10” or 12” subwoofer units (Simba/Faya)
• 1600W–3000W: Full Faya/Simba rig with preamp, amp, and playback devices
• 3000W–3500W+: Full sound system with multiple tops, scoops, amp racks, and FX

Notes:

• estimated RMS or continuous draw values, not peak
• Consumption can vary depending on the music genre (e.g., heavy bass vs. ambient), volume level, and ambient temperature.
• FS4000D handles 4000W continuous / 8000W peak, so it's built with headroom to safely run even full systems under real-world stress.
