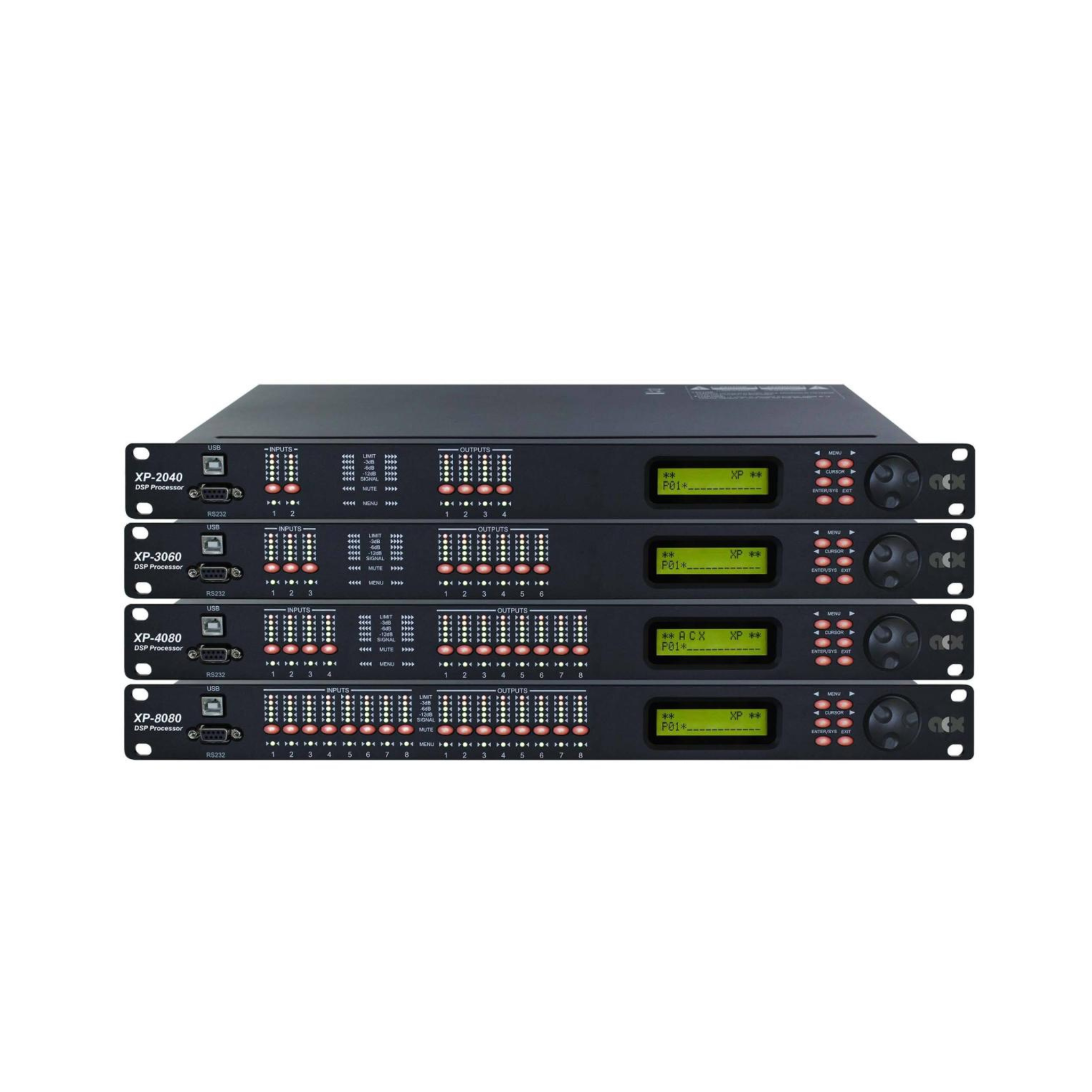

Système de gestion numérique LS ACX XP 4080
Taxes inclues Frais d'envoi calculés au paiement
Achetez en toute confiance. Consultez nos conditions d'expédition et de remboursement pour plus de détails.
Nous offrons une garantie de deux ans sur tous nos produits.
SPECIFICATIONS
- 4 Inputs / 8 Outputs
- 96 kHz sampling rate with 40-bit floating-point DSP
- 24-bit AD/DA converters for accurate sound reproduction
- Full DSP Suite
• 31-band Graphic EQ per input
• 8 Parametric EQs per input and output
• Multiple crossover filters (Butterworth, Linkwitz-Riley, Bessel)
• Input compression and RMS limiters on outputs - Delay control up to 650 ms on each input and output for precise alignment
- Flexible routing
- USB, RS-232, and Ethernet for configuration and remote management
- Intuitive front-panel control plus XConsole software for Mac/PC
- Store and recall up to 30 presets with password protection
- Compact 1U rack design
Audio input/output:
Audio input: 4 x XLR (balanced, >10 kOhms impedance)
Audio outputs: 8 x XLR (50 Ohms impedance)
Maximum input level:
+20 dBu
Power Amplifier Class:
Class D
Processor (DSP):
40-Bit Floating Point
Sampling Rate:
96 kHz
System Delay:
1.5 ms
Display:
2 x 16-Digit LCD (backlit)
Power Supply:
90-265 VAC, 50/60 Hz, 20 VA
Frequency Response:
±0.1 dB (20 Hz - 30 kHz)
Dynamic Range:
115 dB
Crosstalk:
< -100 dB
Distortion:
0.002% (1 kHz @ +4 dBu)
Gain:
-40 dB to +15 dB in 0.25 dB increments
Delay:
Up to 650 ms per input/output
Variable EQ:
8 per input/output (Parametric, Hi/Lo shelf, Phase)
Graphic EQ:
31-Band (1/3 Octave, per input)
Compressor:
1 per input
Limiter:
1 per output
Filter Types:
Butterworth, Linkwitz-Riley, Bessel
Slope:
6 to 48 dB per octave
Connections:
USB: Type B
RS232: Female DB-9
Ethernet: CAT-5
Power Connection: Standard IEC
Additional Features:
Number of Programs: 30
Security: 2-level password protection
Control Software: Included for remote configuration
Network Capability: Up to 16 units on the same network
Optional Add-On: XPanel programmable wall control unit
Mounting Type:
1U Rack Mount
Material:
Steel chassis with XLR and CAT-5 Ethernet connectors, high-grade internal electronics.
Dimensions:
W: 48.3 cm, H: 4.4 cm, D: 22.9 cm
Weight:
4.6 kg
